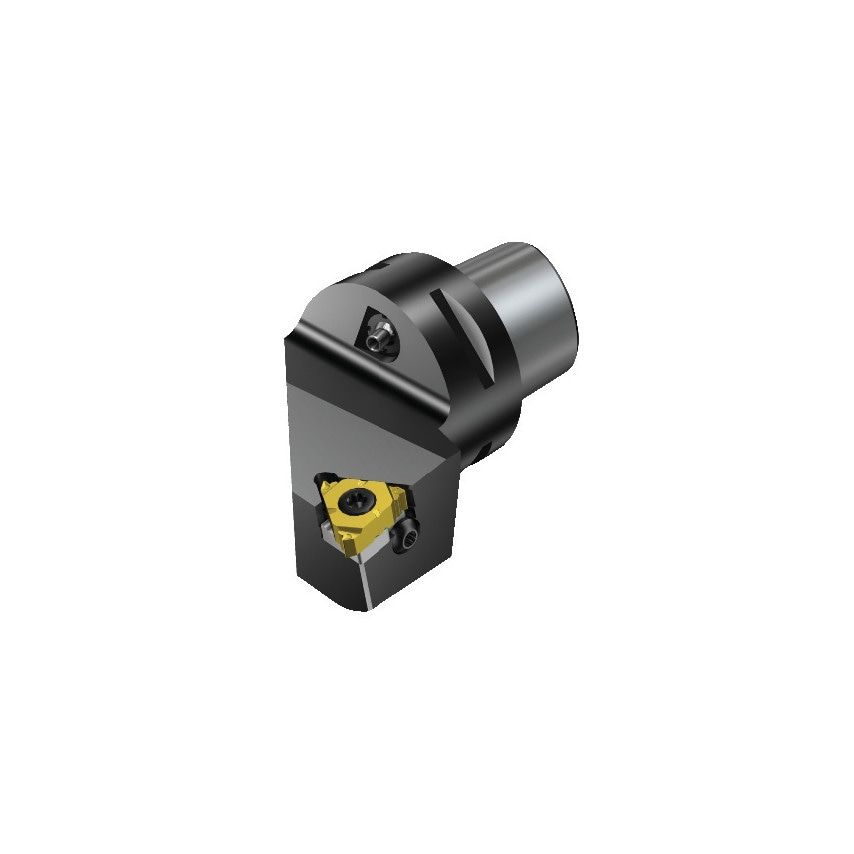

Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.
| Body Diameter | 0.79in |
| Hand Preference | Right |
| Usable Length | 41mm |
| Machine Side Body Angle | 0\u00b0 |
| Unit System | Metric |
| Through Hole Function Property | Yes |
| Functional Length | 65mm |
| Maximum Overhang | 65mm |
| Weight | 0.51kg |
| CoroPak | 25 |
| MFR Part No. | 25961402 |
| Connection Diameter | 50mm |
| Axial Clearance Angle | 15\u00b0 |
| Minimum Bore Diameter | 25mm |
