Product Range: CoroBore XLTool Type: Rough boring and fine boringThe CoroBore XL system is a group of large diameter boring tools. The wide application range covers rough and fine boring, interpolation turning as well as face grooving and the unique SpiroGrooving method.Features & Benefits- Large-diameter boring system- Silent Tools adapters available for vibration-free boring- Optimized cartridges designed for greatest stability- Internal coolant to the cutting edge- CoroBore 111 dedicated rough boring insertsApplication Area- Conventional boring, back boring and external boring- Rough boring- Fine boring- SpiroGrooving- Face grooving- Interpolation turning- The CoroBore XL system covers diameters 1481275 mm (5.82750.197 inch)

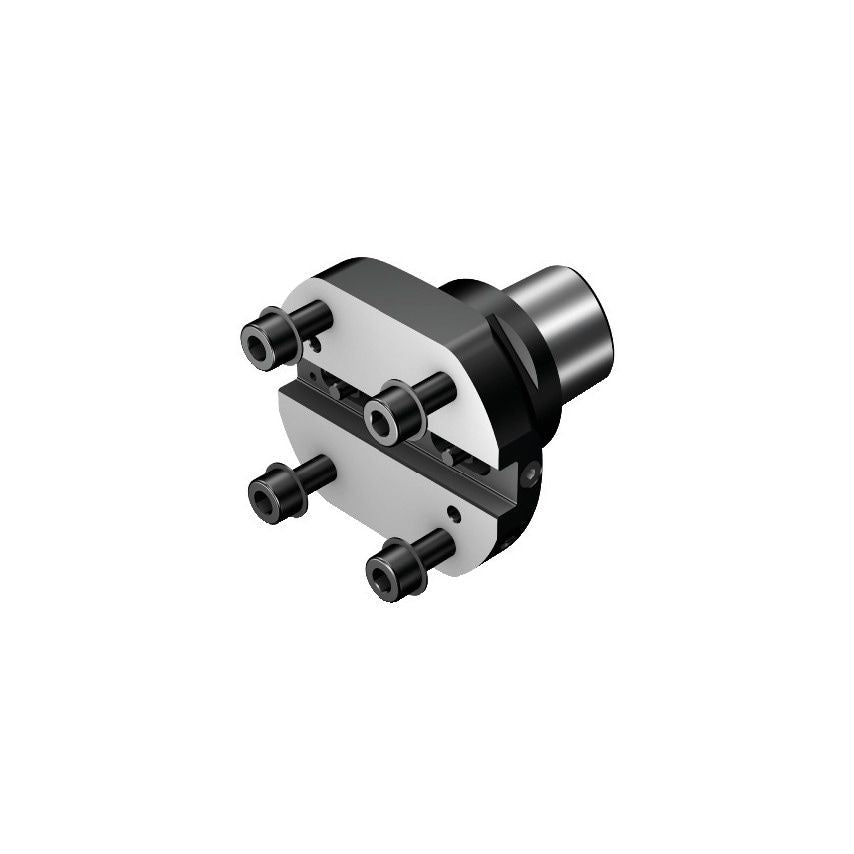

| Adaptive Interface Workpiece Direction | Boring Slide - Size S14FR |
| MFR Part No. | 7323221179755 |
| Functional Length | 40mm |
| Unit System | Metric |
| CoroPak | 110 |
| Minimum Cutting Diameter | 30mm |
| Maximum Cutting Diameter | 75mm |
| Weight | 1.2kg |
| Body Material | Steel |
| Through Hole Function Property | Yes |
| Overall Height | 70mm |
