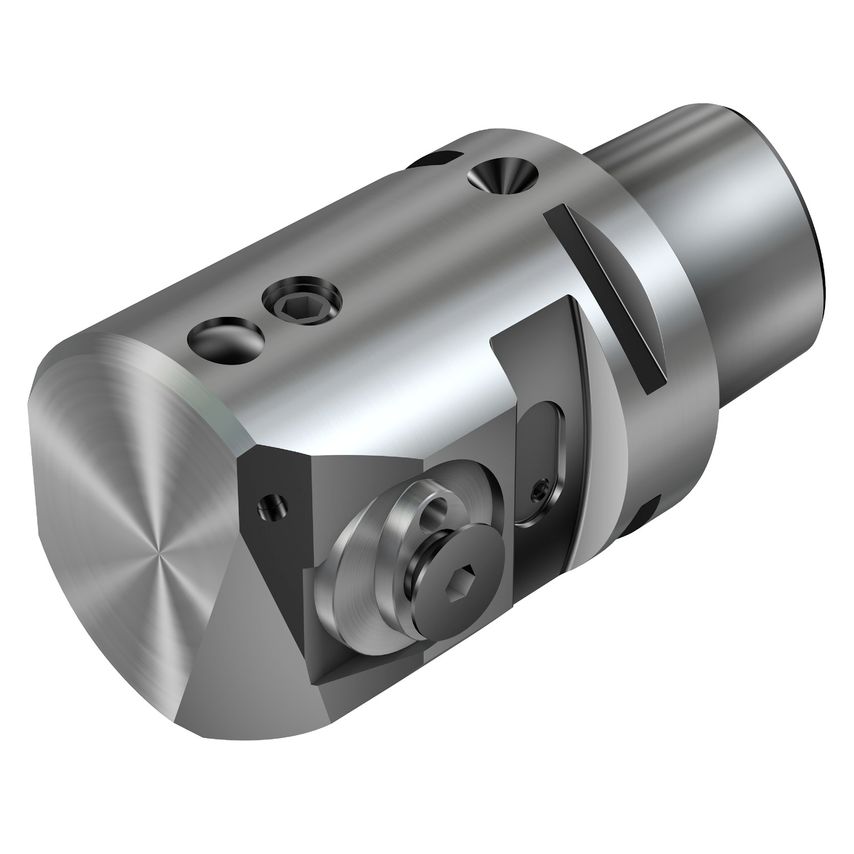

Product Range: CoroBore 825Tool Type: Fine boring toolsFine boring tools for high-precision boringFeatures & Benefits- Flexible fine boring tools with nonius adjustment- Hole tolerances from IT6- Available as damped tool for vibration-free boring, even with long overhangs- Coolant through the toolApplication areaOptimized geometries and grades for all materials, Used in conventional fine boring and back boring

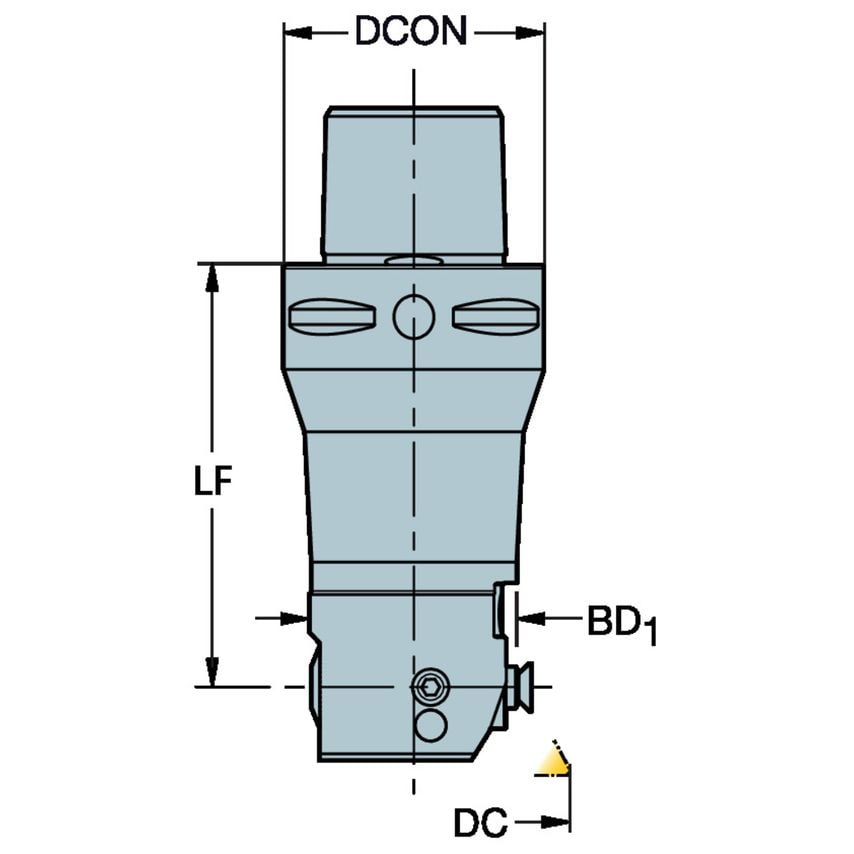

| Coolant Exit Style | 3 |
| Minimum Cutting Diameter | 86mm |
| Functional Length | 67mm |
| Unit System | Metric |
| CoroPak | 75 |
| Connection Diameter | 63mm |
| MFR Part No. | 11881004 |
| Through Hole Function Property | Yes |
| Standards Met | ISO26623-1 |
| Adaptive Interface Workpiece Direction | CoroBore 825 - Size C |
| Body Diameter | 3.15in |
| Maximum Cutting Diameter | 107mm |
| Body Material | Steel |
| Body Half Taper Angle | 0\u00b0 |
| Weight | 2.68kg |
