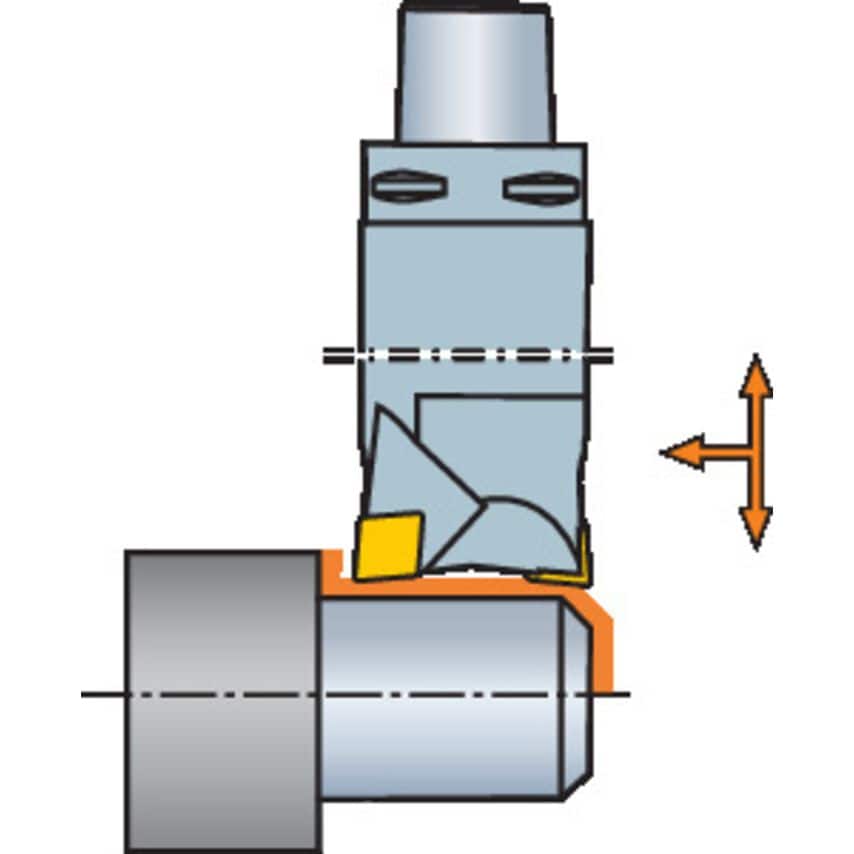

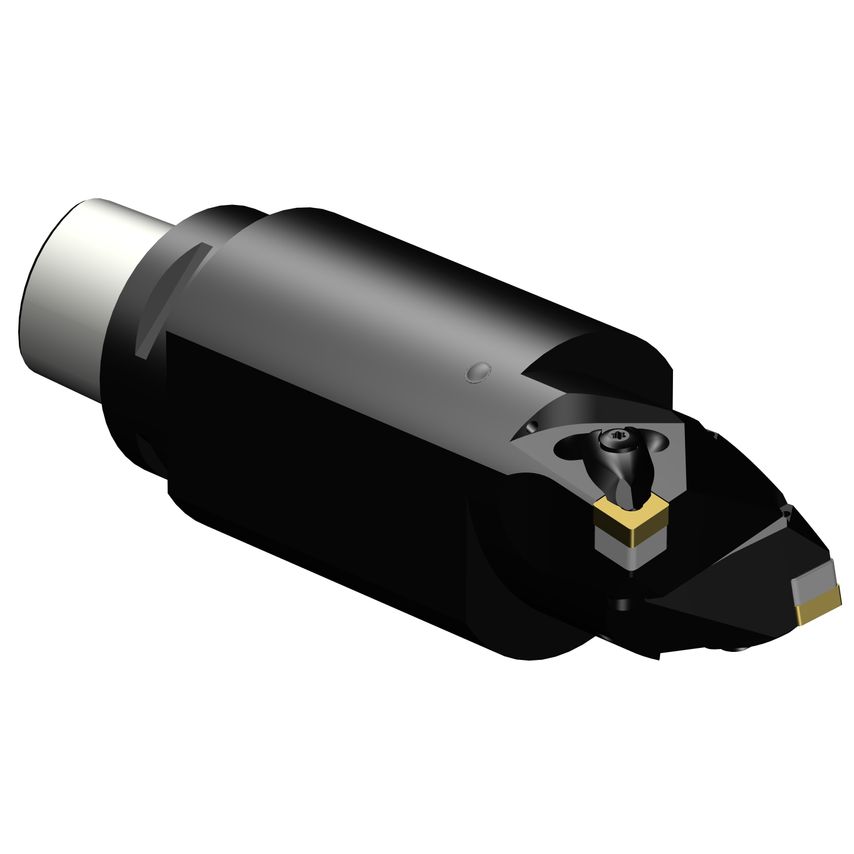

Product Range: CoroPlex TTCoroPlex TT is a twin tool with great flexibility. With two turning inserts on the same tool, substantial tool changing time is saved. CoroPlex TT gives you a variety of solutions for most turning operations.Features & Benefits- Two turning tools in one- Flexible tool holders optimized in length, stability- Coolant solution for multi-task machines
| Body Material | Steel |
| Machine Side Body Angle | 0\u00b0 |
| Maximum Ramping Angle | 0\u00b0 |
| Damping Property | No |
| MFR Part No. | 11829786 |
| Connection Diameter | 63mm |
| Coolant Exit Style | 3 |
| Workpiece Side Body Angle | 0\u00b0 |
| Functional Diameter | 44mm |
| Unit System | Metric |
| Maximum Overhang | 165mm |
| Through Hole Function Property | Yes |
| Weight | 4.56kg |
| Overall Height | 75mm |
| CoroPak | 75 |
| Standards Met | ISO26623-1 |
