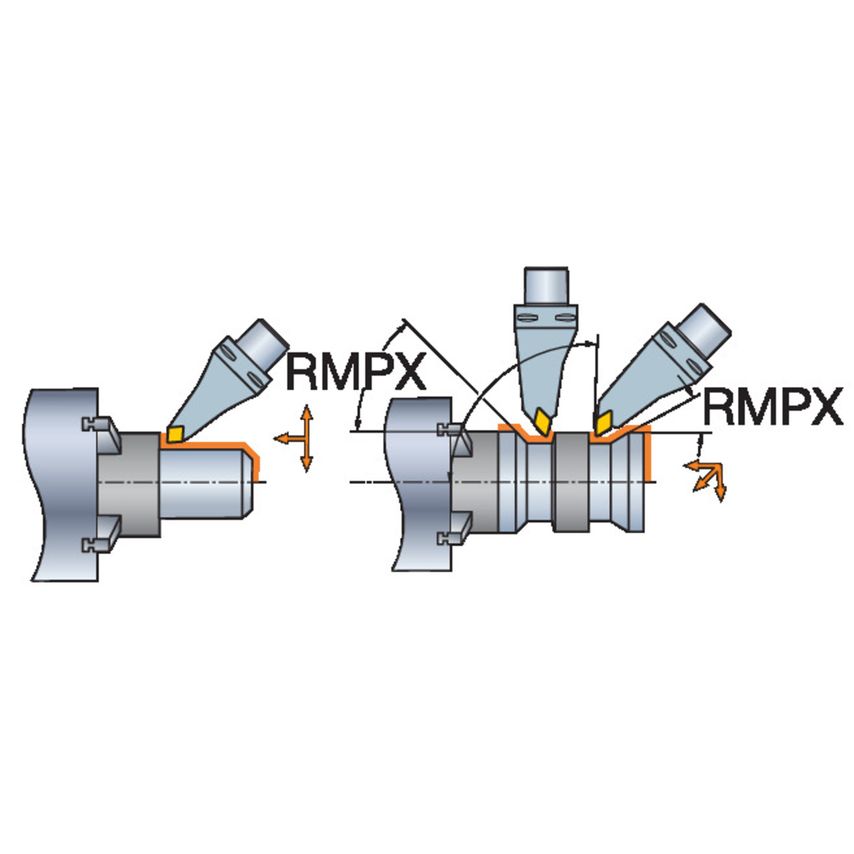

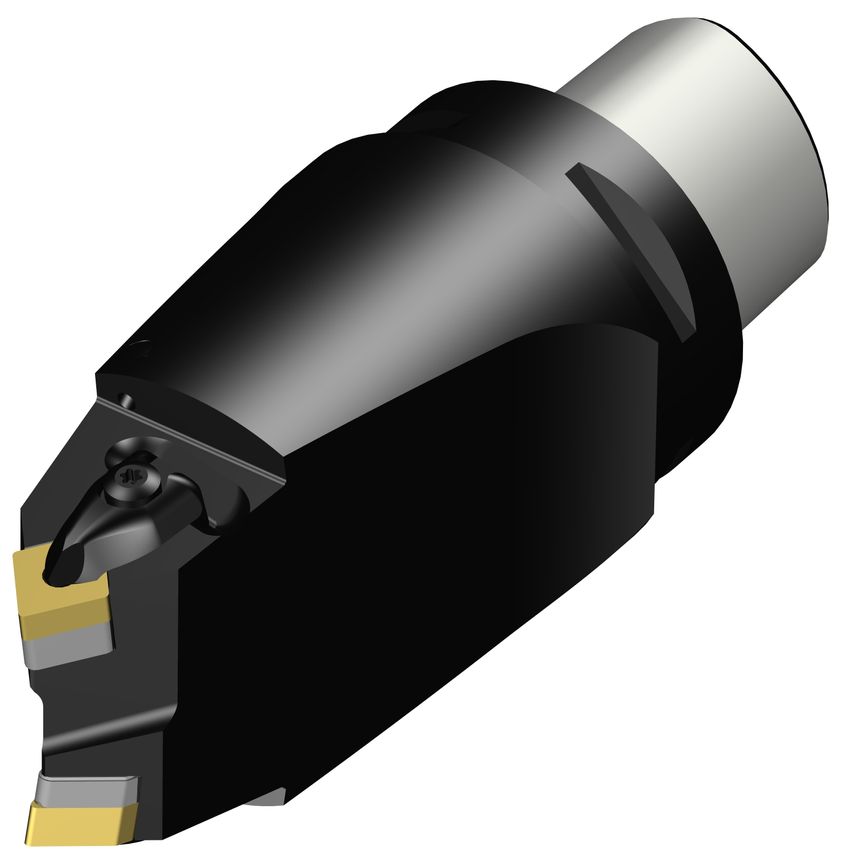

Product Range: CoroPlex TTCoroPlex TT is a twin tool with great flexibility. With two turning inserts on the same tool, substantial tool changing time is saved. CoroPlex TT gives you a variety of solutions for most turning operations.Features & Benefits- Two turning tools in one- Flexible tool holders optimized in length, stability- Coolant solution for multi-task machines
| Damping Property | No |
| Standards Met | ISO26623-1 |
| CoroPak | 75 |
| Coolant Exit Style | 3 |
| Body Material | Steel |
| MFR Part No. | 11829742 |

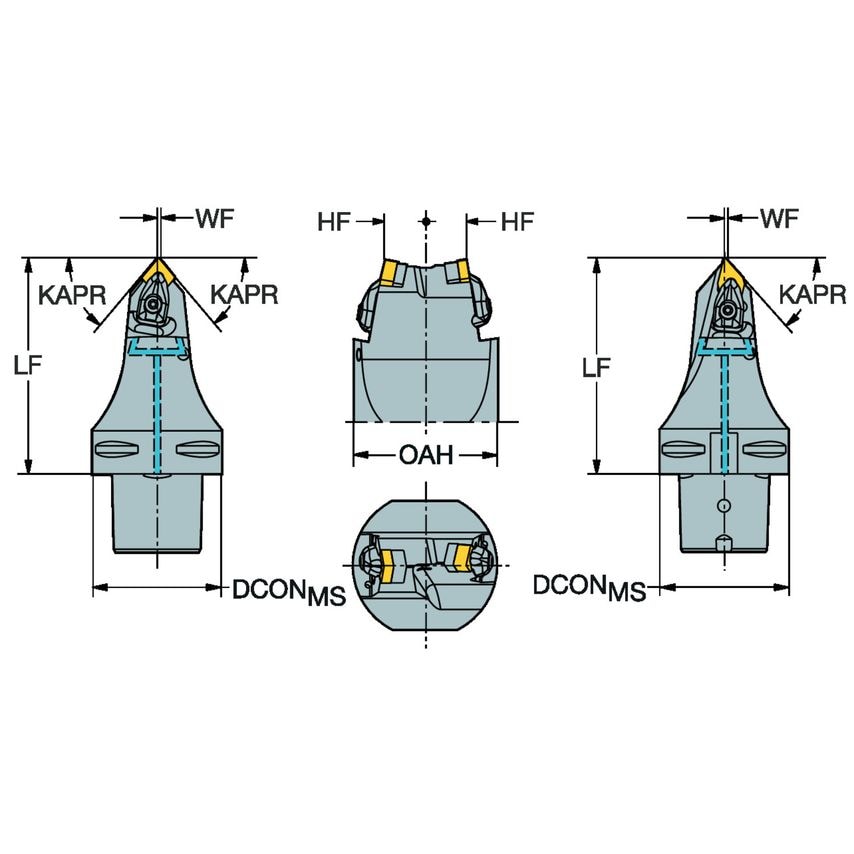

| Functional Diameter | 44mm |
| Connection Diameter | 63mm |
| Overall Height | 70mm |
| Unit System | Metric |
| Maximum Overhang | 130mm |
| Through Hole Function Property | Yes |
| Weight | 2.42kg |
| Machine Side Body Angle | 45\u00b0 |
| Workpiece Side Body Angle | 0\u00b0 |
