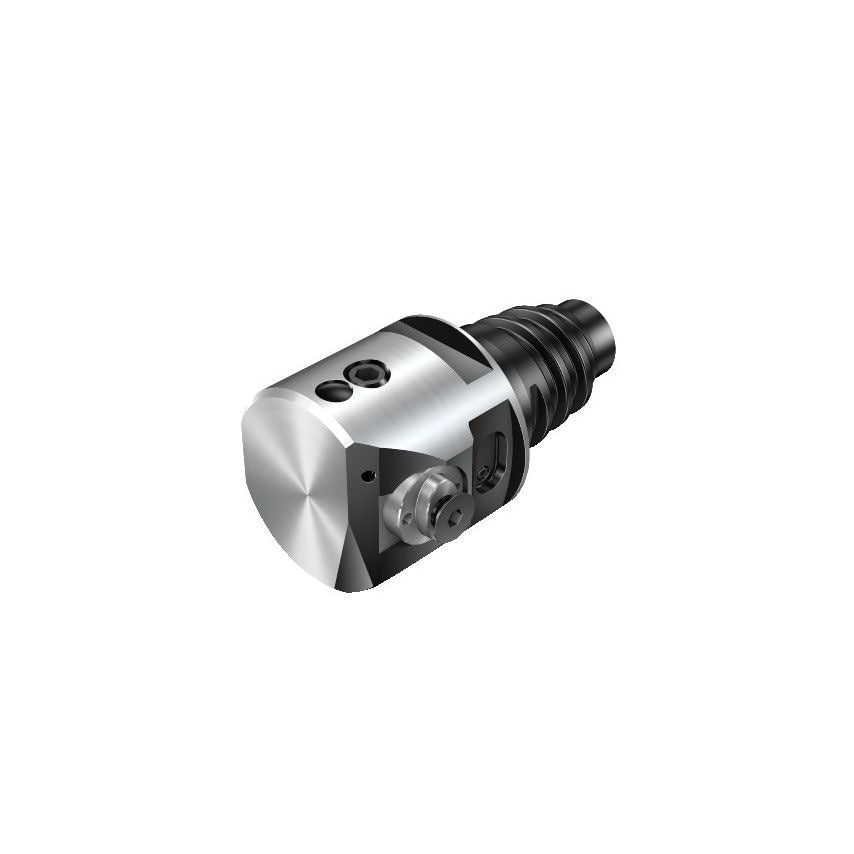

Product Range: CoroBore 825Tool Type: Fine boring toolsFine boring tools for high-precision boringFeatures & Benefits- Flexible fine boring tools with nonius adjustment- Hole tolerances from IT6- Available as damped tool for vibration-free boring, even with long overhangs- Coolant through the toolApplication areaOptimized geometries and grades for all materials, Used in conventional fine boring and back boring
| CoroPak | 12 |
| Adaptive Interface Workpiece Direction | CoroBore 825 - Size A |
| Body Diameter | 0.71in |
| Adaptive Interface Machine Direction (ADINTMS) | Coromant EH - Metric - E16 |
| MFR Part No. | 26424081 |
| Unit System | Metric |
| Maximum Cutting Diameter | 23mm |
| Body Half Taper Angle | 0\u00b0 |
| Body Material | Steel |
| Through Hole Function Property | Yes |
| Minimum Cutting Diameter | 19mm |
| Coolant Exit Style | 3 |
| Coolant Entry Style Code | 65.08 |
| Functional Length | 14mm |
| Connection Diameter | 15.5mm |
