Product Range: CoroBore XLTool Type: Rough boring and fine boringThe CoroBore XL system is a group of large diameter boring tools. The wide application range covers rough and fine boring, interpolation turning as well as face grooving and the unique SpiroGrooving method.Features & Benefits- Large-diameter boring system- Silent Tools adapters available for vibration-free boring- Optimized cartridges designed for greatest stability- Internal coolant to the cutting edge- CoroBore 111 dedicated rough boring insertsApplication Area- Conventional boring, back boring and external boring- Rough boring- Fine boring- SpiroGrooving- Face grooving- Interpolation turning- The CoroBore XL system covers diameters 1481275 mm (5.82750.197 inch)

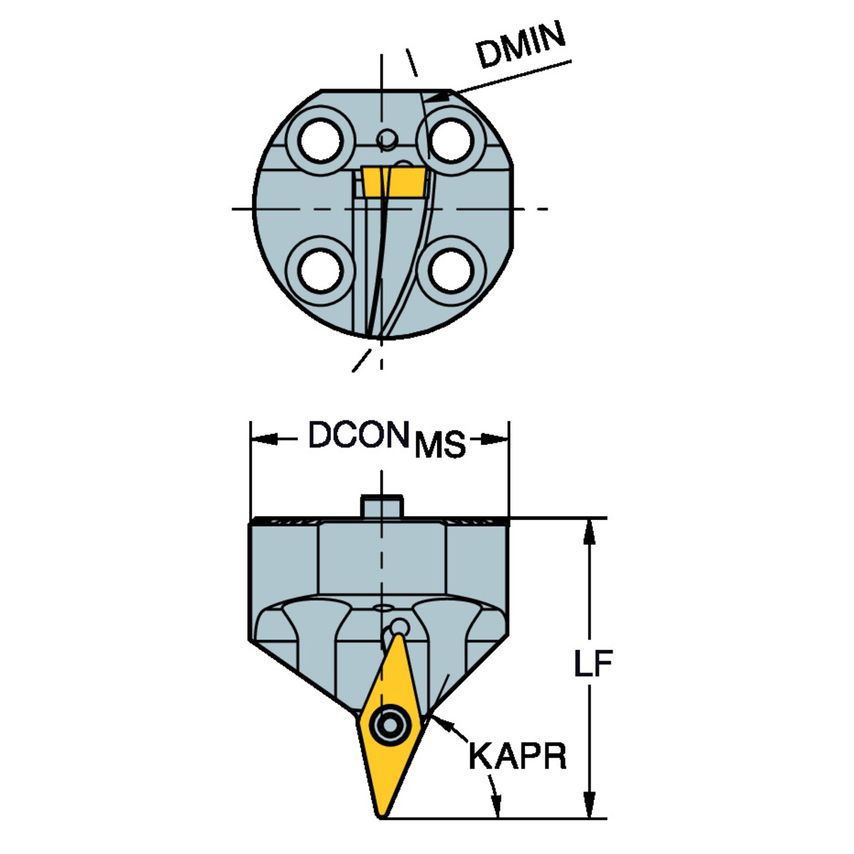

| CoroPak | 350 |
| Usable Length | 15mm |
| Body Diameter | 1.57in |
| Damping Property | No |
| Connection Diameter | 8mm |
| Body Material | Steel |
| Minimum Bore Diameter | 50mm |
| Through Hole Function Property | Yes |
| Weight | 0.16kg |
| Maximum Overhang | 45mm |
| Functional Length | 45mm |
| Machine Side Body Angle | 0\u00b0 |
| Hand Preference | Left |
| Workpiece Side Body Angle | 0\u00b0 |
| MFR Part No. | 7933264 |
| Tool Lead Angle | 23\u00b0 |
| Coolant Exit Style | 4 |
| Coolant Entry Style Code | 63 |
| Unit System | Metric |
| Tool Cutting Edge Angle | 67\u00b0 |
| Maximum Ramping Angle | 75\u00b0 |
