£148.50
Loading...

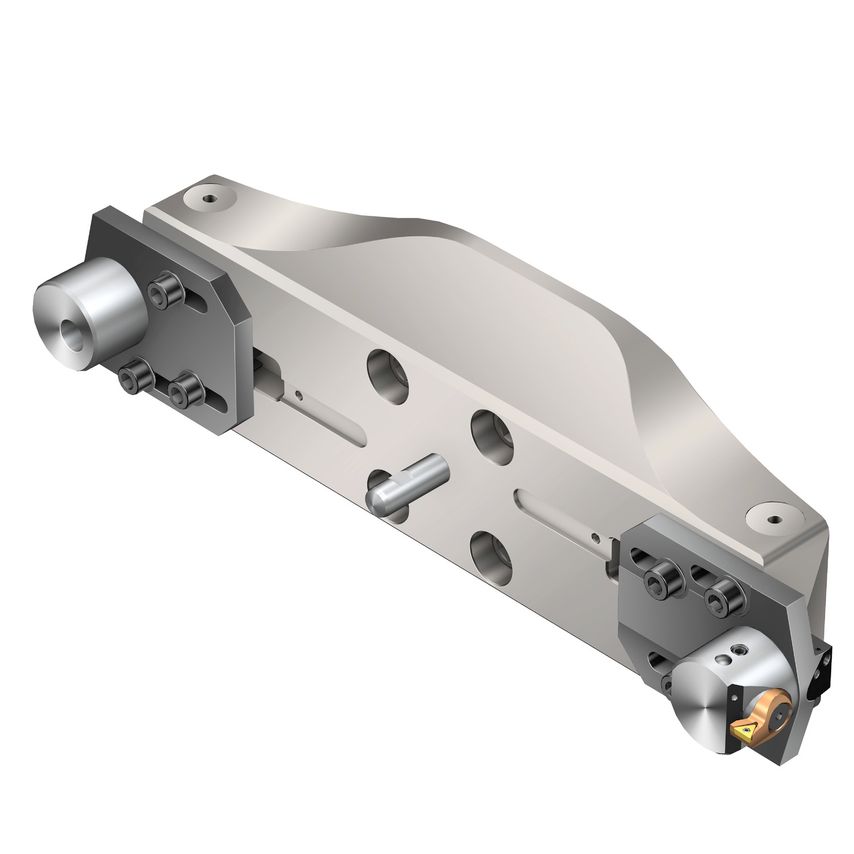

Product Range: CoroBore 826Tool Type: Fine boring toolsFine boring tool with excellent chip controlFeatures & Benefits- Fine boring with click-wise diameter setting in microns- High-precision nozzles for coolant directed to the cutting edge- Hole tolerances from IT6- Rigid interfaces between head and cartridge for stable, vibration-free boring- Coolant through the toolApplication AreaFine boring, Hole tolerance: IT6, Diameter range 361267 mm (1.41749.882 inch)
| Connection Diameter | 40mm |
| Maximum Adjustment Limit | 41.65mm |
| Body Material | Steel/Aluminium |
| CoroPak | 268 |
| Overall Height | 164mm |
| Tool Cutting Edge Angle | 92\u00b0 |
| Coolant Entry Style Code | 60 |
| Unit System | Metric |
| Functional Length | 126mm |
| Minimum Cutting Diameter | 384.35mm |
| Weight | 10.4kg |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 467.65mm |
| MFR Part No. | 7866455 |
| Body Diameter | 14.76in |
