£148.50
Loading...

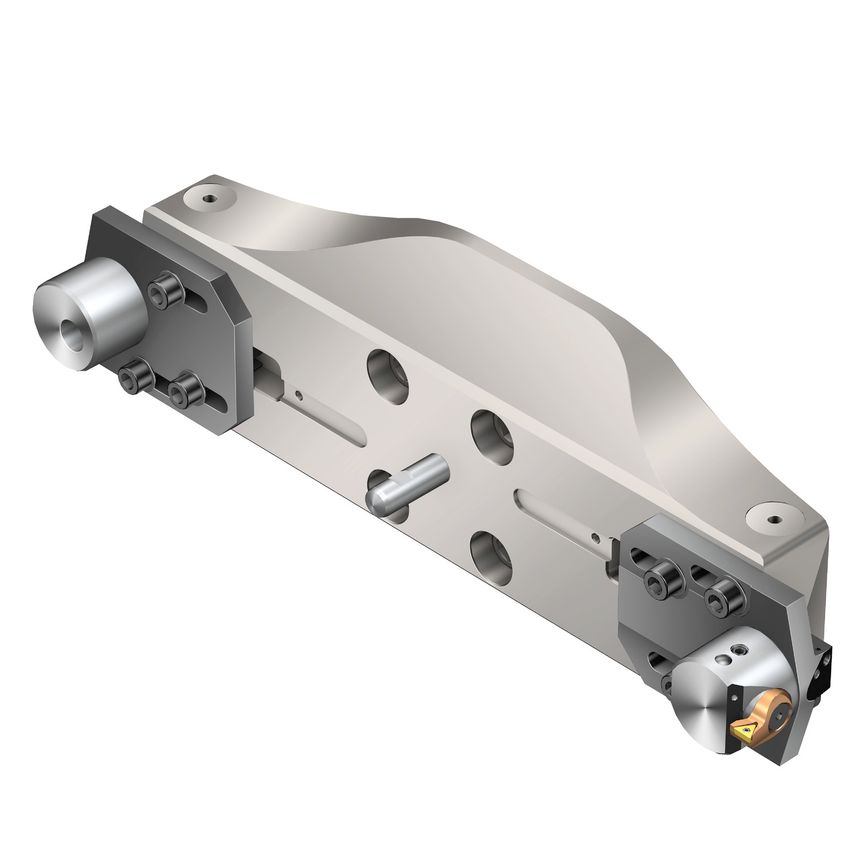

Product Range: CoroBore 826Tool Type: Fine boring toolsFine boring tool with excellent chip controlFeatures & Benefits- Fine boring with click-wise diameter setting in microns- High-precision nozzles for coolant directed to the cutting edge- Hole tolerances from IT6- Rigid interfaces between head and cartridge for stable, vibration-free boring- Coolant through the toolApplication AreaFine boring, Hole tolerance: IT6, Diameter range 361267 mm (1.41749.882 inch)
| Functional Length | 131mm |
| MFR Part No. | 7866456 |
| Through Hole Function Property | Yes |
| Connection Diameter | 40mm |
| Coolant Entry Style Code | 60 |
| Body Material | Steel/Aluminium |
| Maximum Cutting Diameter | 547.65mm |
| Overall Height | 164mm |
| Weight | 12.34kg |
| Minimum Cutting Diameter | 464.35mm |
| CoroPak | 268 |
| Body Diameter | 17.91in |
| Tool Cutting Edge Angle | 92\u00b0 |
| Maximum Adjustment Limit | 41.65mm |
| Unit System | Metric |
