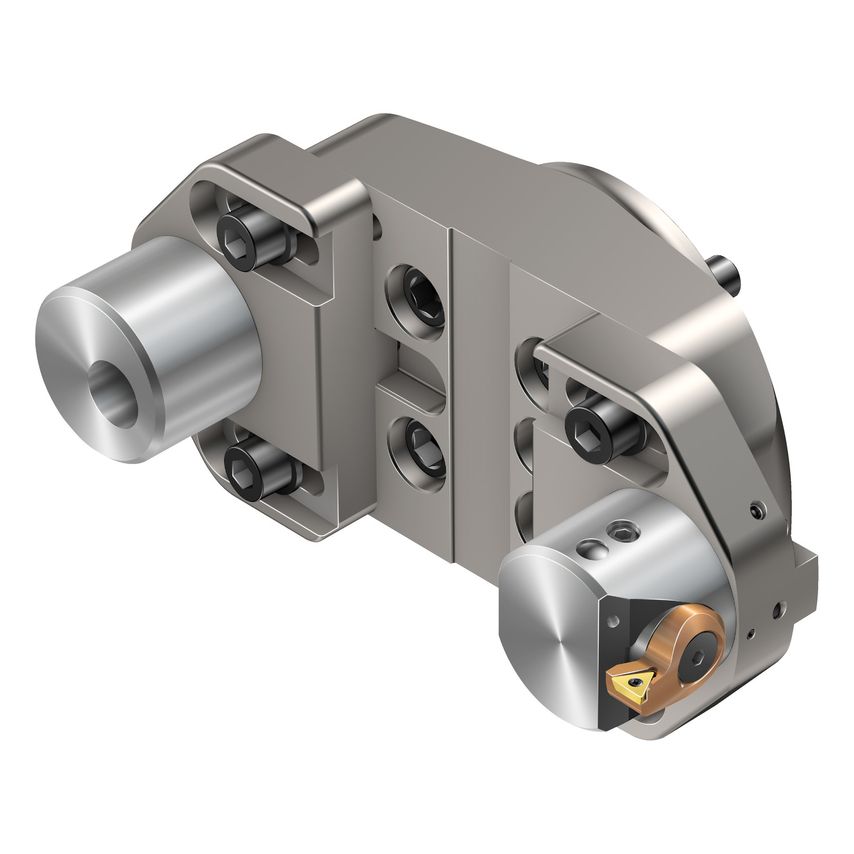

Product Range: CoroBore 826Tool Type: Fine boring toolsFine boring tool with excellent chip controlFeatures & Benefits- Fine boring with click-wise diameter setting in microns- High-precision nozzles for coolant directed to the cutting edge- Hole tolerances from IT6- Rigid interfaces between head and cartridge for stable, vibration-free boring- Coolant through the toolApplication AreaFine boring, Hole tolerance: IT6, Diameter range 361267 mm (1.41749.882 inch)
| CoroPak | 270 |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 207.65mm |
| Body Material | Steel/Aluminium |
| Body Diameter | 5.71in |
| Functional Length | 117mm |
| Maximum Adjustment Limit | 26.65mm |
| Weight | 3.31kg |
| Tool Cutting Edge Angle | 92\u00b0 |
| Minimum Cutting Diameter | 154.35mm |
| Connection Diameter | 40mm |
| Coolant Entry Style Code | 60 |
| Unit System | Metric |
| Overall Height | 104mm |
| MFR Part No. | 7866461 |
| Standards Met | ISO6462 |
