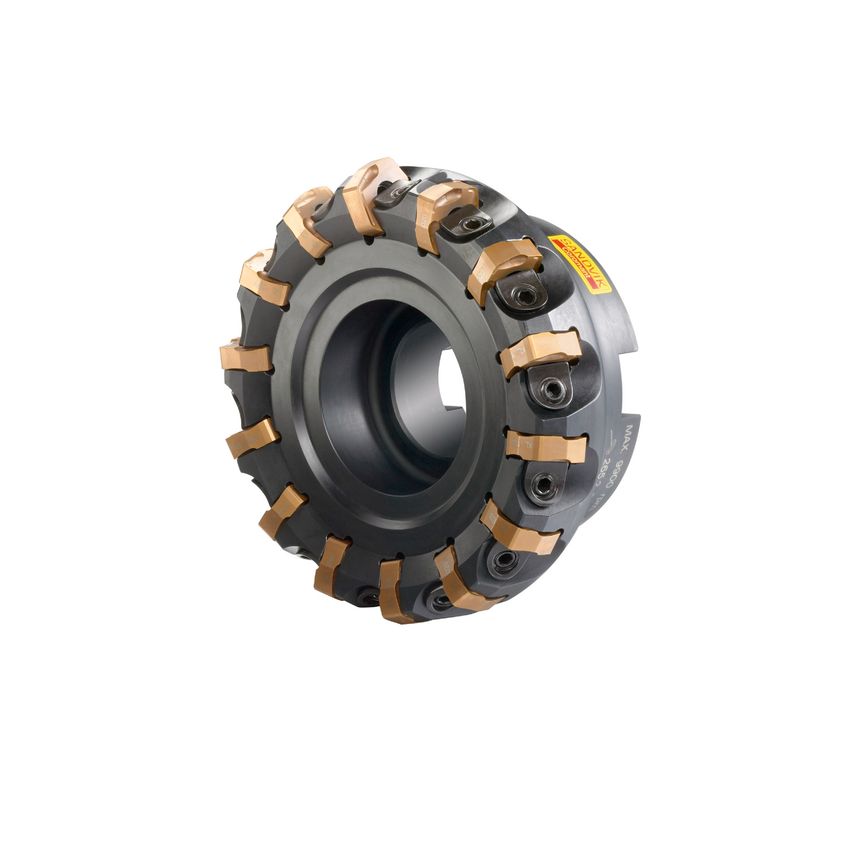

Product Range: CoroMill 365CoroMill 365 is the essential tool for rough to semi-finish face milling of cast iron and steel components. Use the tool for large series production and applications where high metal removal rate is critical. First choice for roughing to semi-finishing in cast iron.Benefits- Inserts with ability to machine down to AP = 6 mm (0.236 inch)- Unique design with eight true cutting edges for high productivity machining to achieve low cost per component- Multi-edge self-located insert provides robust and reliable machining- The higher density of inserts in the cutter body means that higher table feeds can be implemented to give exceptional manufacturing economyFeatures- Coromant Capto coupling or Arbor mounted- Through coolant design- Right- or left-hand insert design available- Geometry and grade laser marked on the insert for easy identification- Wiper inserts for improved surface finishApplication- Face milling cutter developed for machining in ISO K material, but also works well in ISO P and ISO H materials- Diameter range: 40250 mm (1.5010.0 inch), 160500 mm (12.018.0 inch) (Wedge clamp)
| Weight | 2.06kg |
| Maximum Ramping Angle | 0\u00b0 |
| Unit Measured | Imperial |
| MFR Part No. | 5732010 |
| Through Hole Function Property | Yes |

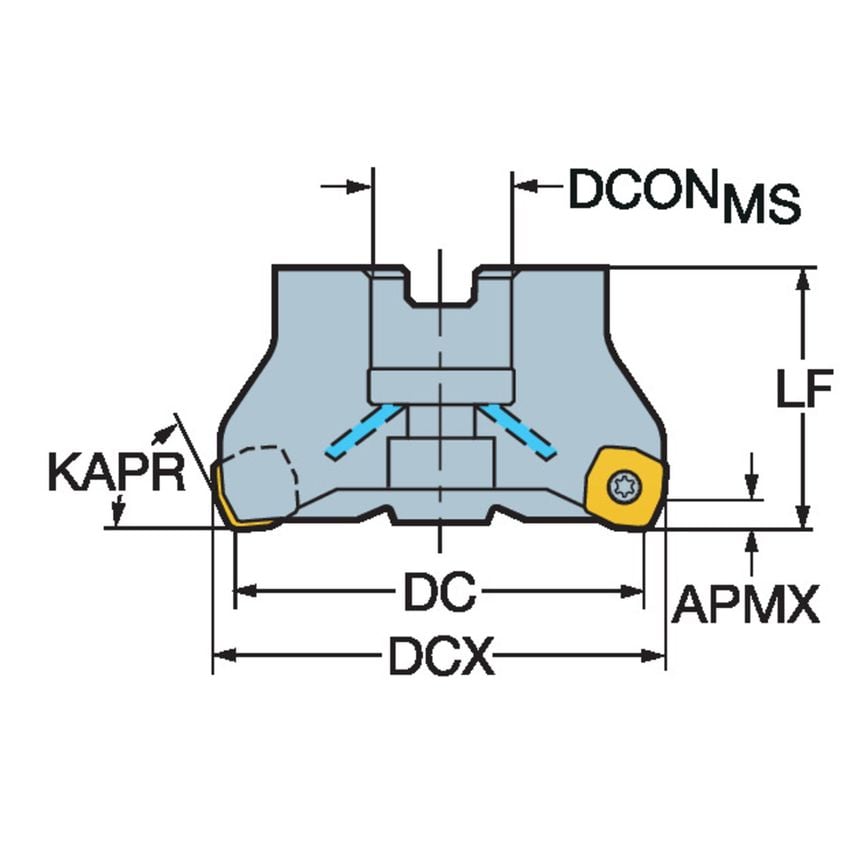

| Functional Length | 50mm |
| Maximum Cutting Diameter | 108.3mm |
| Maximum Cutting Depth | 6mm |
| Hand Preference | Left |
| Cutting Diameter | 101.6mm |
| Connection Diameter | 38.1mm |
| Damping Property | No |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 9800 1/min |
| Standards Met | ISO6462 |
| CoroPak | 7.2 |
| Body Material | Steel |
| Max. Depth of Cut | 6mm |
| Tool Cutting Edge Angle | 65\u00b0 |
