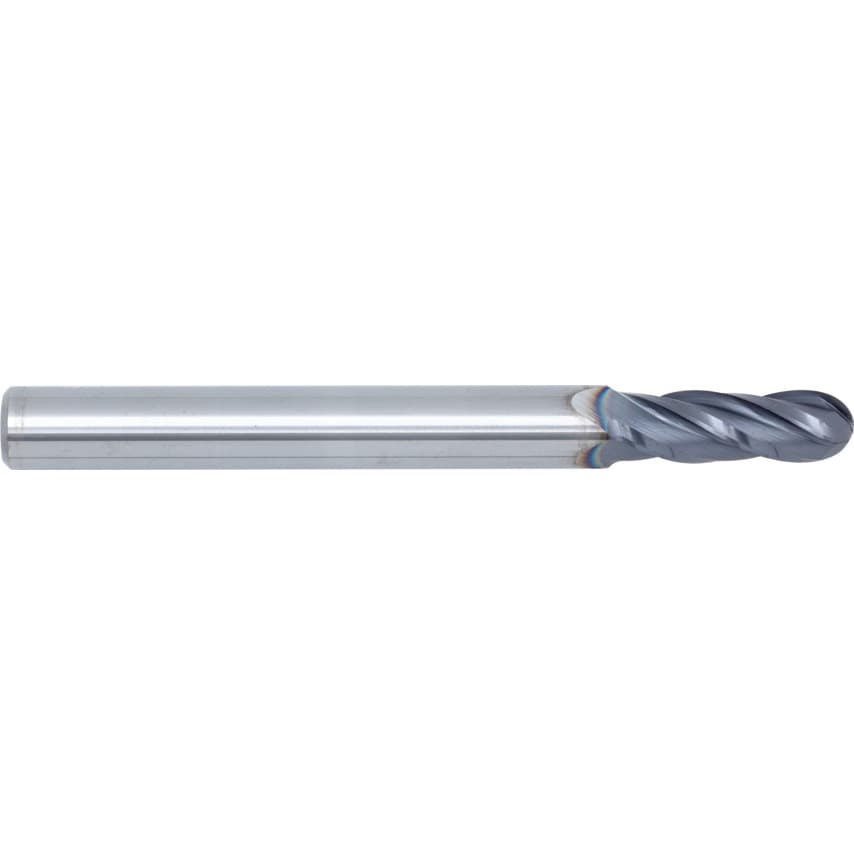

SGS ball nosed fractional end mills are manufactured from a hardy micrograin solid carbide for improved strength and cutting performance. With four flutes and with a TA coating they offer excellent wear and heat resistance prolonging tool lifespan.
Features and Benefits
Manufactured from micrograin solid carbide for improved strength
TA coated for improved heat and wear resistance
Notes
Cutter diameter: 7/32 in
Cutting direction: Right hand
Finish: TA coated
Flute type: Spiral
Helix angle: 30 deg
Length of cut: 5/8 in
Material: Micrograin solid carbide
Number of flutes: 4
Overall length: 2-1/2 in
Series: 01B
Shank diameter: 1/4 in
Shank length: 1-7/8 in
Shank type: Straight
Type: Ball nose end fractional
Typical Applications
Milling
| Material | Carbide |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Shank Type | Straight |
| Length Type | Regular |
| Coolant Delivery | External |
| System of Measurement | Inch |
| MFR Part No. | 30044 |
| Flute Type | Spiral |
| Cutter Diameter | 7/32in |
| Type | Ball nose end fractional |
| Product Type | Ball nose end fractional |
| Cutter Style | Ball Nose |
| Cutting Direction | Right Hand |
