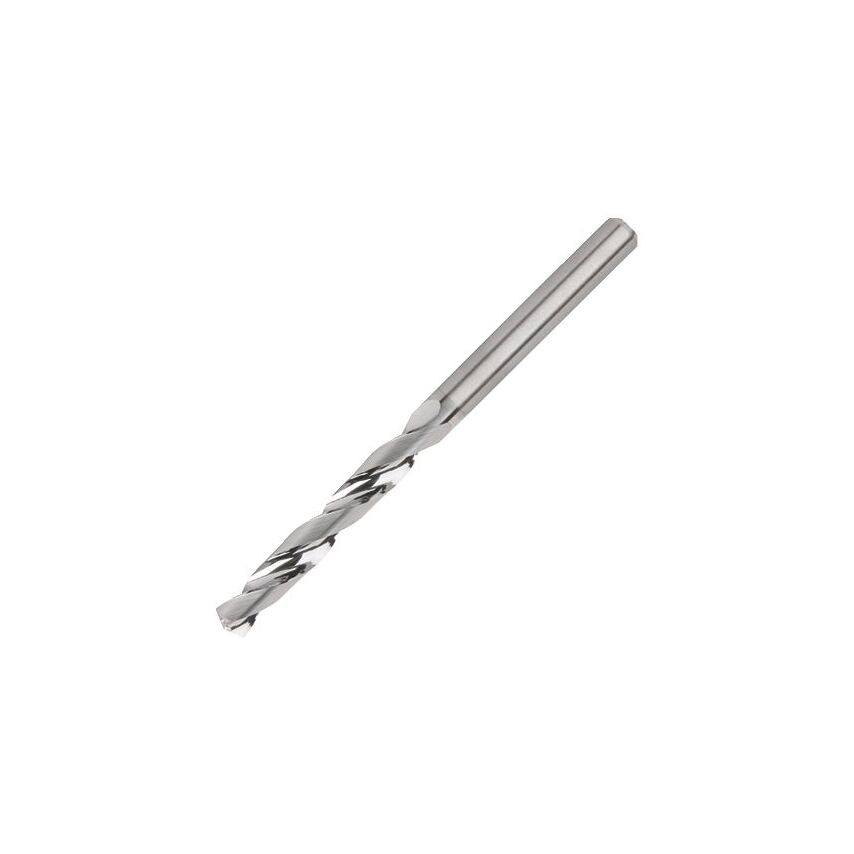

HPS Beyond Drills Aluminum Through CoolantHigh-Performance Solid Carbide Drills
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| MFR Part No. | 5434749 |
| Overall Length | 102mm | 102.0000mm |
| Drill Point | 2.051mm |
| Coolant Supplied | Yes |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Drill Depth | 40mm | 40.0000mm |
| Hand Preference | Right |
| Flute Construction | Helical Flute |
| Flute Length | 55mm | 55.0000mm |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Assembly Length | 54.949mm |
| Unit Measured | Metric |
| Adapter Style | MQL Drill Shank |
| Shank Length | 45.0000mm |
| Functional Length | 99.9490mm |
| Drill Diameter | 11.1130mm |
| Clamping Length | 45mm |
| Number of Flutes | 2 |
| Material | Carbide |
| Helix Type | Right Hand Helix/Flute |
| Helix Angle | 28.241 |
| Primary Material | Non-Ferrous Materials |
