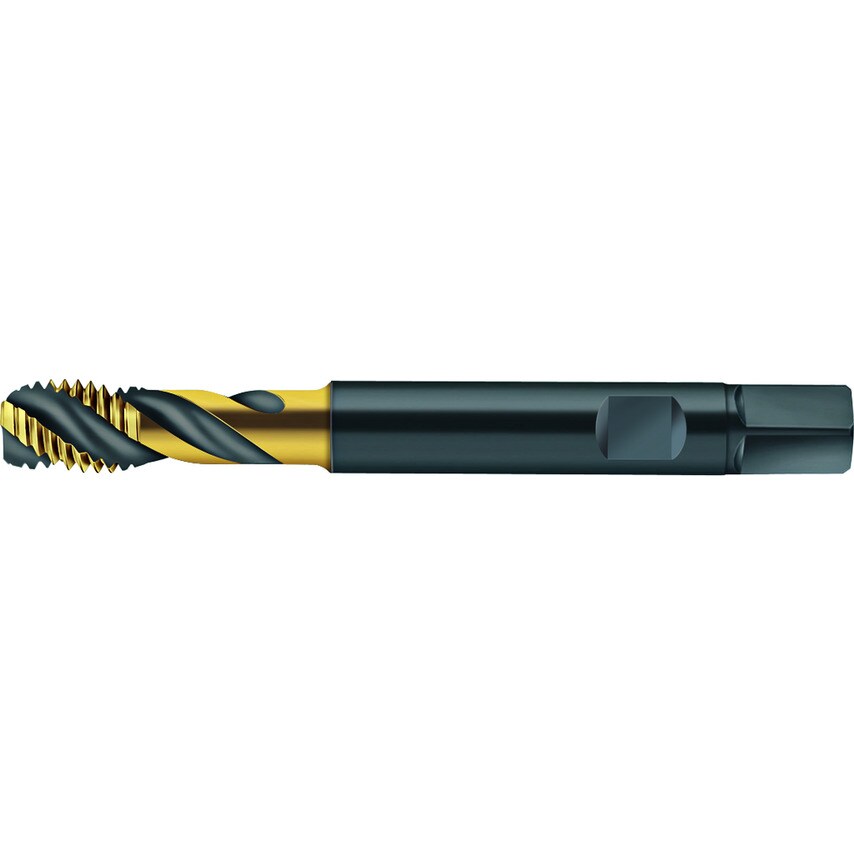

HSS-E machine taps Paradur Synch. C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX ~DIN 376 right hand flute 40 Suitable for blind hole TIN/VAP M 12 P=0.0689in
| Number of Grooves | 3 |
| Thread Pitch | 1.75mm |
| Usable Length | 68mm |
| Connection Diameter | 12mm |
| Clamping Width | 9mm |
| Cutting Edge Length | 18.5mm |
| Functional Length | 110mm |
| Tool Designation | S2056315-M12 |
| Driving Square Length | 12mm |
| MFR Part No. | 5101708 |
| Thread Size | M 12 |
