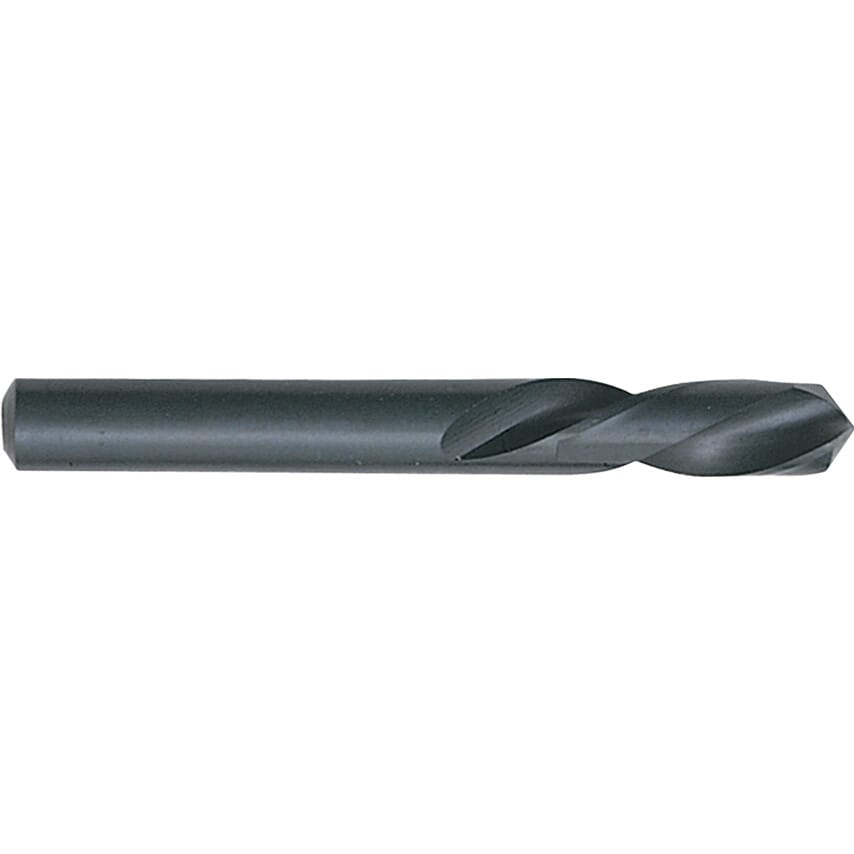

Series S100 HSS straight shank stub drills are designed as general purpose drills for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron.
Features and Benefits
Manufactured form HSS for strength and rigidity when machining
Black oxide coating for additional heat and wear resistance
Designed for use on automatic ans turret lathes
Typical Applications
Drilling
Steels
Cast iron
Alloy steel
Malleable cast iron
Standards
Manufactured to BS328: Part 1: 1986/DIN 1897.
| Number of Pieces | 1 |
| Drill Diameter Metric | 8.2 |
| Standards Met | BS 328 | DIN 1897 |
| Point Angle | 118\u00b0 |
| Helix Type | Normal Helix |
| Helix Angle | 10 - 20\u00b0 |
| Web Thickness | Standard |
| Flute Length | 37mm |
| Product Type | Stub Drills |
| Drill Diameter Tolerance | H8 |
| Series | S100 |
| Drill Diameter | 8.2mm |
| System of Measurement | Metric |
| Material | HSS |
| Cutting Direction | Right Hand |
| Finish/Coating | Black Oxide |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | F11 |
| Overall Length | 79mm |
| Coolant Delivery | External |
| Flute Type | Spiral |
