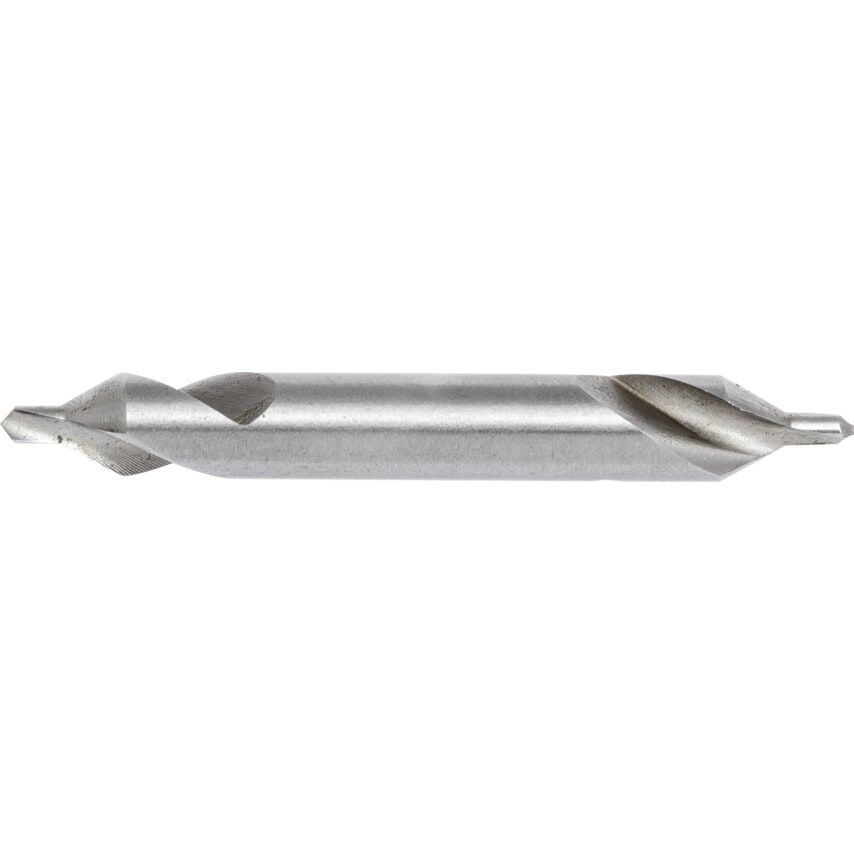

Inch Series - Series C100 are designed with spiral flutes and various lengths and forms to give high quality centre holes that suit most applications.
Features and Benefits
Manufactured from high speed steel for increased tool durability
Spiral flutes create quality centre holes
Suitable for drilling steel, cast iron, aluminium, brass and plastics
Specifications
60 inclusive angle
Point angle 120
Plain round shank
Manufactured to BS328: Part 2:1986, DIN333A, ISO866, ISO2540, ISO2541
Typical Applications
Steel
Stainless Steel
Cast iron
Aluminium
Brass
Plastics
| Cutting Style | Plain |
| Maximum Drill Point Length | 5/32in |
| Material | HSS |
| Drill Point Diameter | 3/32in |
| Body Diameter | 1/4in |
| Number of Pieces | 1 |
| Standards Met | BS 328 | DIN 333A | ISO 866 | ISO 2540 | ISO 2541 |
| Drill Point Angle | 120\u00b0 |
| Trade Size | BS3 |
| Minimum Drill Point Length | 1/8in |
| Finish/Coating | Uncoated |
| Countersink Angle | 60\u00b0 |
| Shank Type | Plain Round |
| Overall Length | 2in |
| Series | C100 |
| Product Type | Centre Drill |
