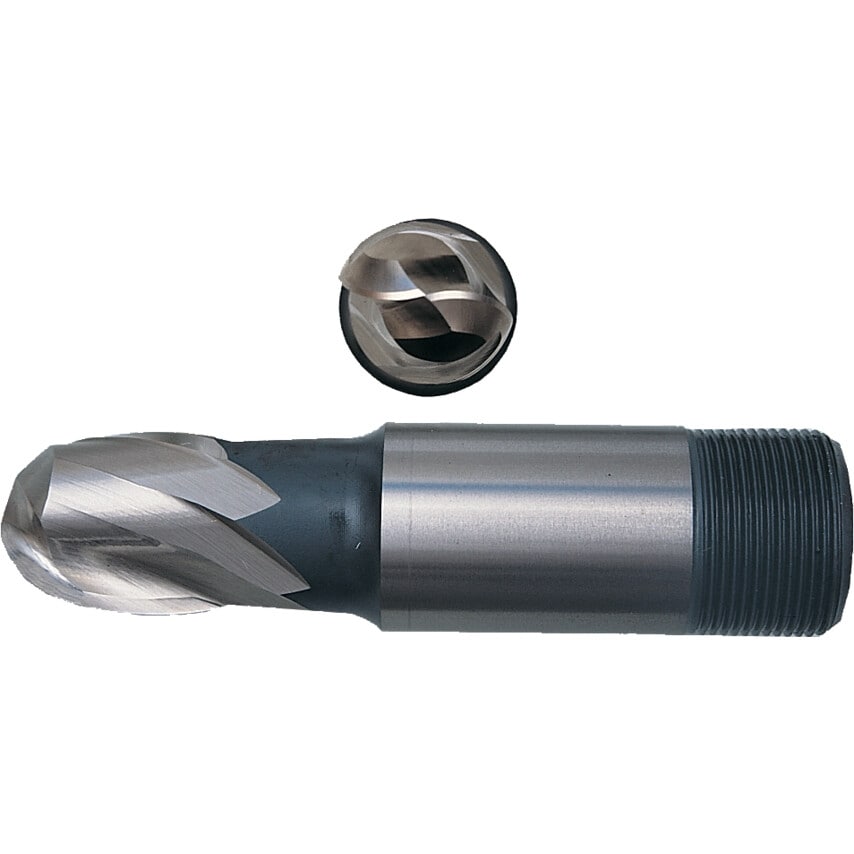

Short Series Type B210T.
Used for die sinking, slot milling and profile milling. Bright finish. Flute type: 30 helix.
Manufactured to BS 122 : Part 4 : 1980.
Metric Tolerances:
Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033;
Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038;
Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.025 -0.046;
Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.033 -0.058;
Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.041 -0.071;
Diameter: Over 30.00 ~ . Tolerance: + 0.051 -0.089.
| Cutter Diameter | 14mm |
| Material | HSS |
| Standards Met | BS 122 |
| Milling Application | Diesinking | Profiling | Slotting |
| Finish/Coating | Bright |
| Shank Type | Threaded |
| Flute Length | 22mm |
| Coolant Delivery | External |
| Length Type | Short |
| Cutting Direction | Right Hand |
| Series | B210T |
| Shank Diameter | 12mm |
| Overall Length | 68.5mm |
| Helix Angle | 30\u00b0 |
| End Mill Type | Slot Drill |
| Product Type | Slot Drills |
| Number of Flutes | 2 |
