Regular Series
For optimum performance and maximum swarf removal when plunging, slotting and routing in most materials including brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

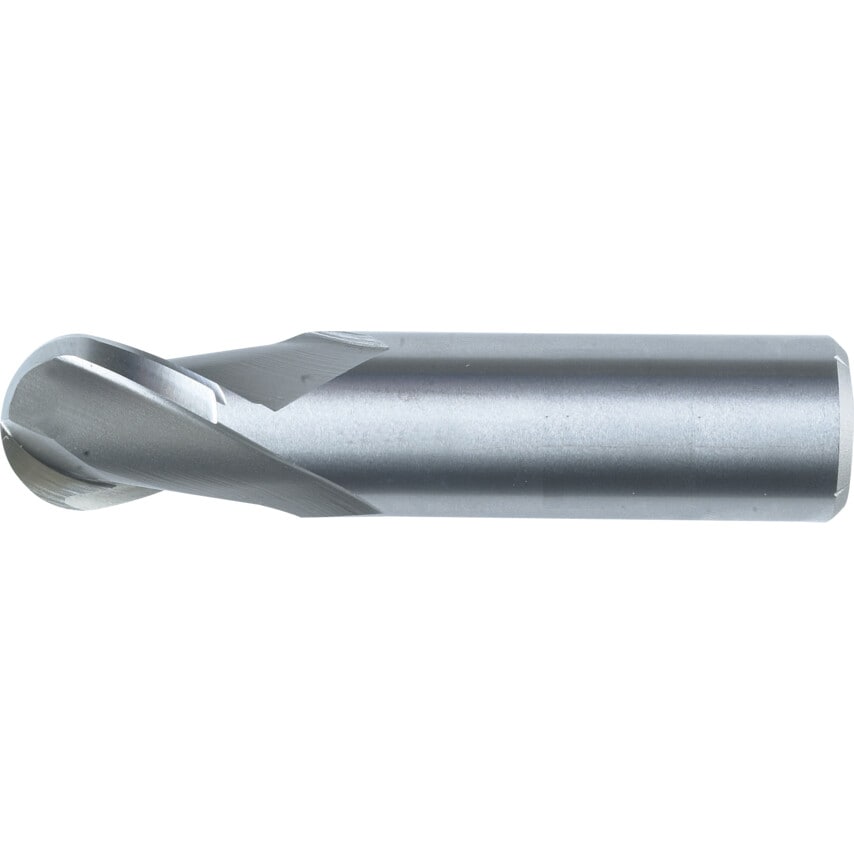

IMAGE IS FOR ILLUSTRATION PURPOSES ONLY
| Milling Application | Plunging | Routing | Slotting |
| Cutting Direction | Right Hand |
| Shank Type | Plain Round |
| Cutter Style | Ball Nose |
| Material | Carbide |
| End Mill Type | Slot Drill |
| Flute Length | 20.0mm |
| Flute Type | Helical |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Plunge Type | Non-centre Cutting |
| Material Application | Nonferrous Metals | Other Soft Materials | Other Soft Materials |
| Shank Diameter | 8.0mm |
| Finish/Coating | Uncoated |
| ISO Designation | N |
| Material Grade | Micrograin |
| Milling Cutter Type | Slot Drill |
| System of Measurement | Metric |
| Standards Met | USCTI Standards |
| Overall Length | 63.0mm |
| Length Type | Regular |
| Cutter Diameter | 8.0mm |
