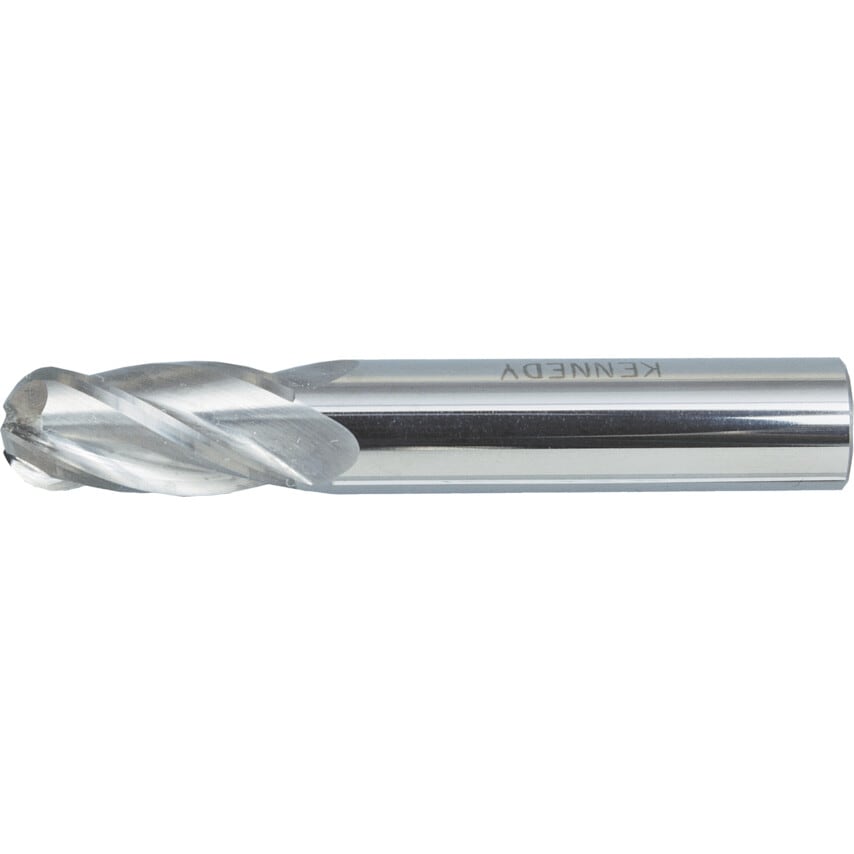

Regular Series
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080
| Cutter Diameter | 12mm |
| Shank Diameter | 12mm |
| Standards Met | ANSI |
| Finish/Coating | Uncoated |
| Cutter Style | Ball Nose |
| Material | Solid Carbide |
| Coolant Delivery | External |
| Flute Length | 25mm |
| Shank Type | Plain Round |
| System of Measurement | Metric |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Overall Length | 75mm |
| Reach Type | Standard Neck |
| Cutting Direction | Right Hand |
| Length Type | Regular |
| Cutting Diameter (mm) | 12mm |
| Number of Flutes | 4 |
| Ball Nose Type | Ball Nose End Mill |
| Material Application | Alloy Steel | Aluminium | Aluminium Alloys | Brass | Bronze | Cast Iron | Copper | Stainless Steels | Steels |
| Milling Application | High-feed Milling |
