Regular Series

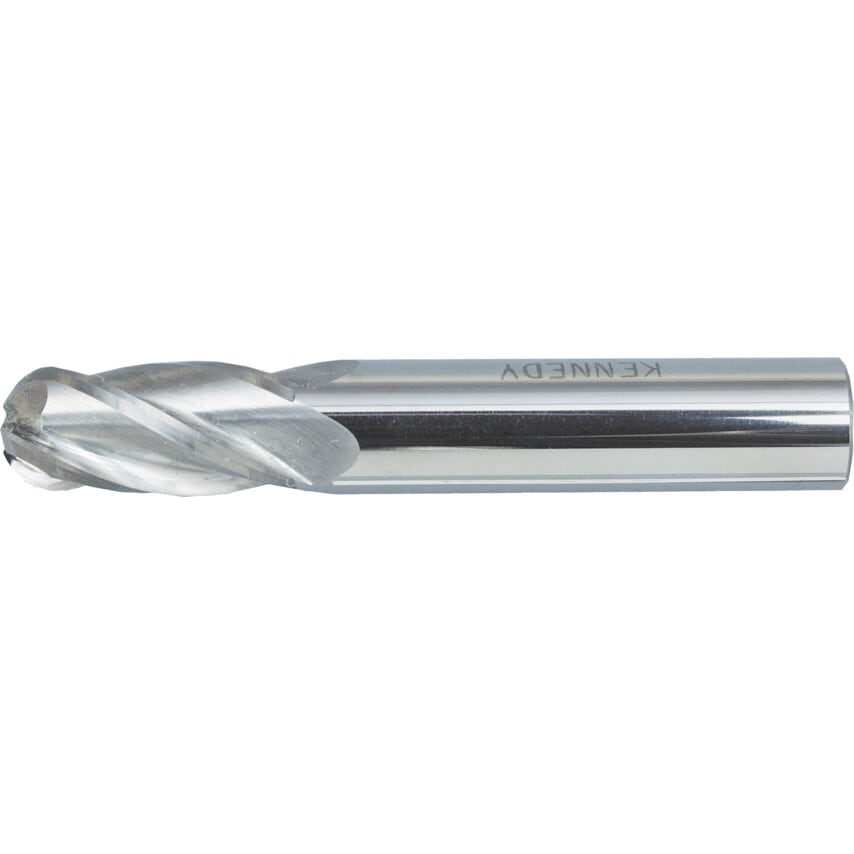

For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080
| Shank Diameter | 4mm |
| Overall Length | 50mm |
| Number of Flutes | 4 |
| Cutter Diameter | 4mm |
| Flute Length | 14mm |
| Standards Met | ANSI |
| End Mill Type | End Mill |
| Coolant Delivery | External |
| Cutting Diameter (mm) | 4mm |
| Flute Type | Helical |
| Milling Application | High-feed Milling |
| Shank Type | Plain Round |
| Reach Type | Standard Neck |
| Finish/Coating | Uncoated |
| Material Application | Aerospace Alloys | Alloy Steel | Aluminium | Aluminium Alloys | Brass | Bronze | Stainless Steels |
| Cutting Direction | Right Hand |
| Length Type | Regular |
| System of Measurement | Metric |
| Cutter Style | Ball Nose |
| Material | Solid Carbide |
| Ball Nose Type | Ball Nose End Mill |
