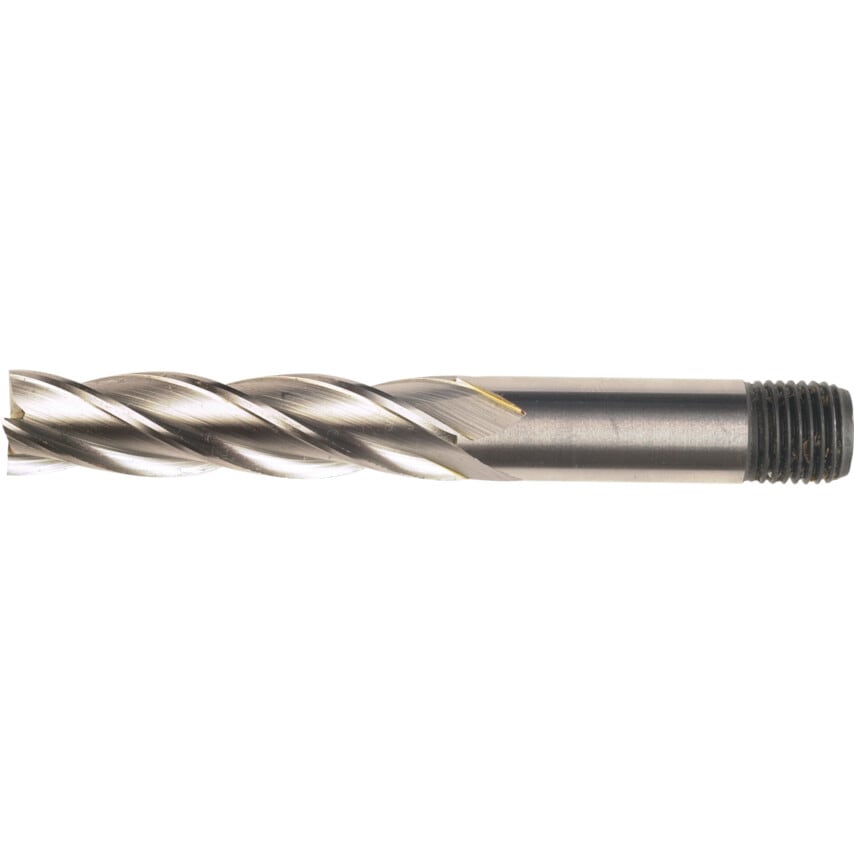

Long Series Type E431T.
Used for profile milling and producing open slots. Bright finish. Flute type: 30 helix.
Manufactured to BS 122 : Part 4 : 1980.
METRIC TOLERANCES:
Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.
Diameter: Over 38.00mm. Tolerance: +0.1250, -0.0000.
| Length Type | Long |
| Cutter Diameter Tolerance | K10 |
| Cutter Style | Square End |
| Shank Diameter | 10mm |
| Shank Type | Threaded |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | End Mills |
| Overall Length | 82.5mm |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Finish/Coating | Bright |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Series | E431T |
| Cutter Diameter | 10mm |
| Material Grade | M35 |
| End Mill Type | End Mill |
| Plunge Type | Non-centre Cutting |
| Flute Length | 37mm |
| Number of Flutes | 4 |
| Standards Met | BS 122 |
