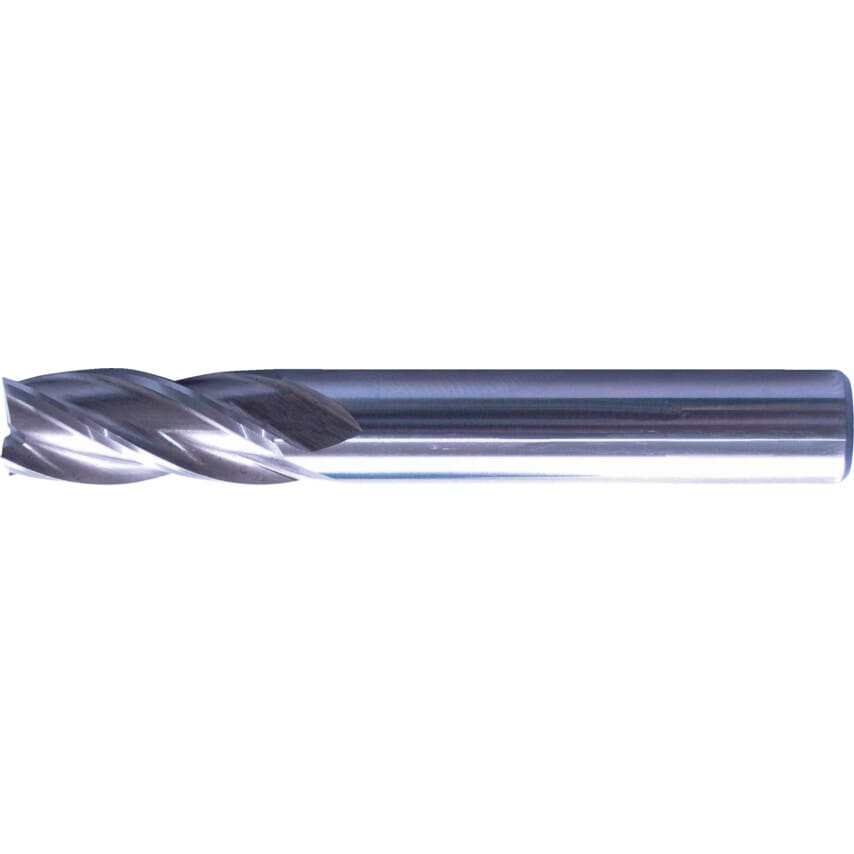

Long Series.
Centre cutting, used for profile milling, milling keyways and producing open slots. Bright finish. Flute type: 30 Helix. Overall dimensions to DIN 844. Plain shank to DIN 1835A.
METRIC TOLERANCES:
Nominal Dia.: Up to 38mm. Limits of Tolerance: +0.0630,-0.0130.
Nominal Dia.: Above 38mm. Limits of Tolerance: +0.1250, -0.0000.
| Cutter Diameter | 3mm |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | K10 |
| Standards Met | DIN 844 | DIN 1835A |
| Cutting Direction | Right Hand |
| Shank Diameter | 6mm |
| Length Type | Long |
| Coolant Delivery | External |
| Shank Type | Plain Round |
| Finish/Coating | Bright |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| End Mill Type | End Mill |
| Flute Length | 12mm |
| Flute Type | Helical |
| Number of Flutes | 4 |
| Milling Cutter Type | End Mills |
| Plunge Type | Centre Cutting |
| Overall Length | 56mm |
| Material | Cobalt High Speed Steel |
