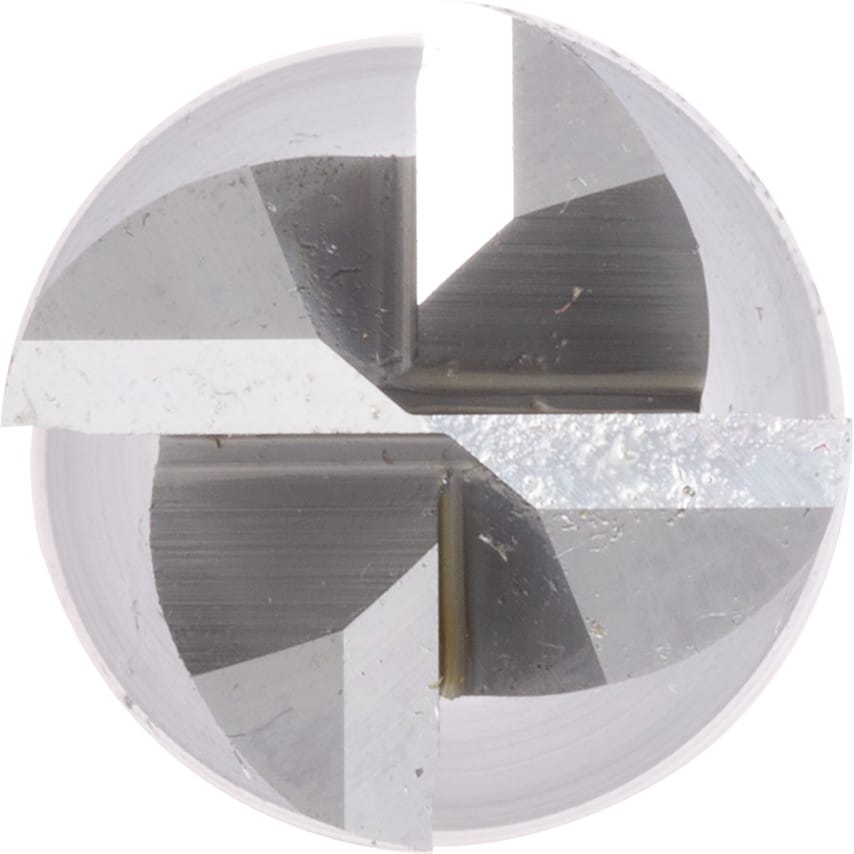

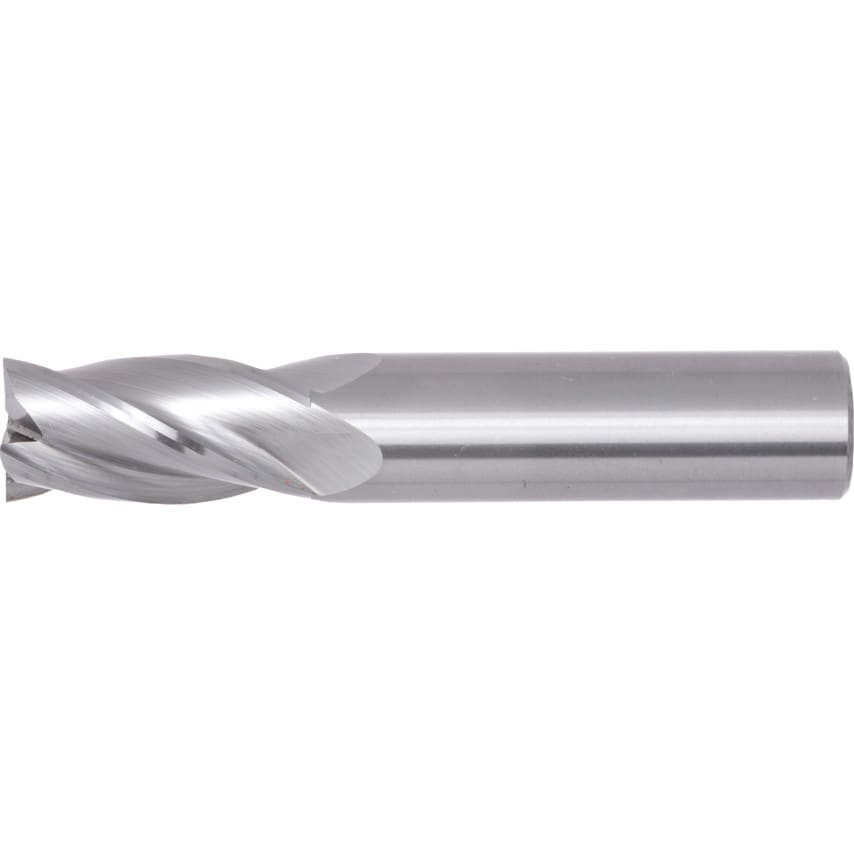

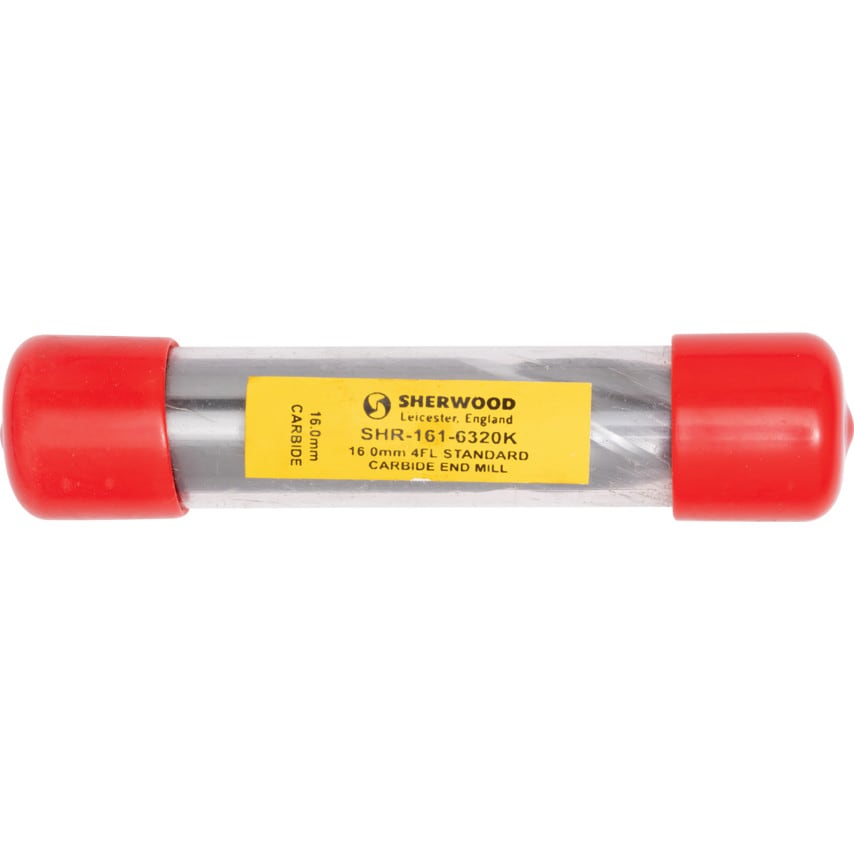

16.0MM 4FL Standard Carbide End Mill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Their 4 flute design offers maximum rigidity for increased strength when cutting. Features and Benefits Carbide micrograin construction for increased strength 4 flutes for maximum rigidity Offfers maximum swarf removal when plunging, slotting and routing in soft and non-ferrous materials Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

Number of Flutes	4
Cutter Diameter	16.0mm
Flute Type	Helical
Shank Diameter	16.0mm
Cutter Style	Square End
Overall Length	89.0mm
Coolant Delivery	External
Material	Carbide
Shank Type	Plain Round
Helix Angle	30\u00b0
Finish/Coating	Bright
Cutting Direction	Right Hand
Milling Cutter Type	End Mills
Standards Met	ANSI
System of Measurement	Metric
Length Type	Regular
Flute Length	32.0mm
Plunge Type	Centre Cutting
End Mill Type	End Mill
