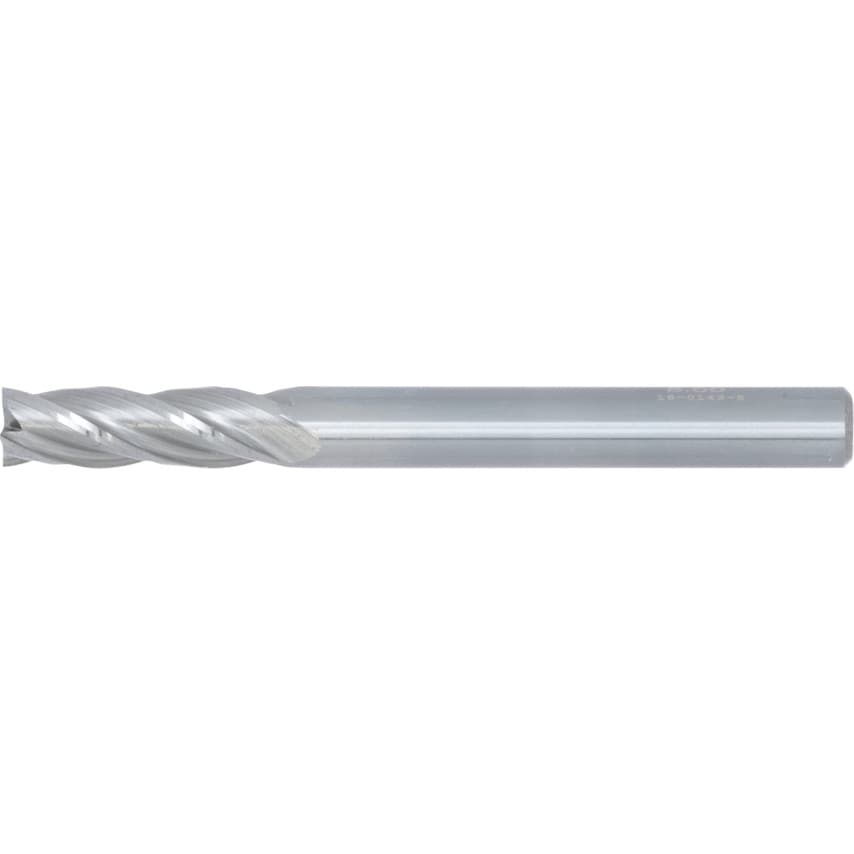

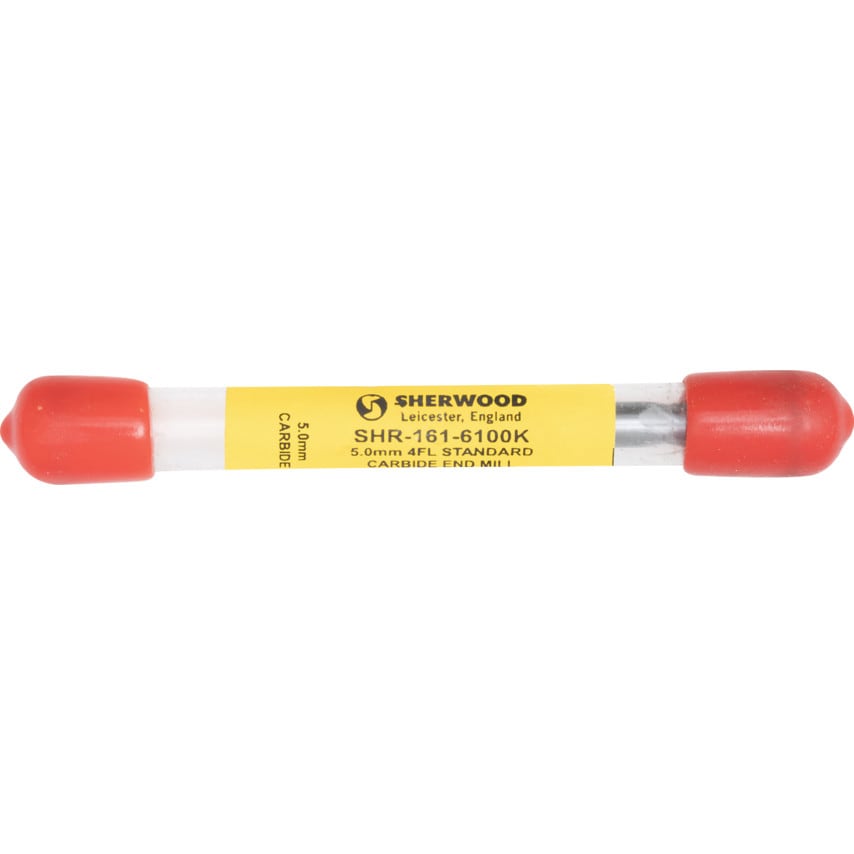

5.0MM 4FL Standard Carbide End Mill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Their 4 flute design offers maximum rigidity for increased strength when cutting. Features and Benefits Carbide micrograin construction for increased strength 4 flutes for maximum rigidity Offfers maximum swarf removal when plunging, slotting and routing in soft and non-ferrous materials Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

Number of Flutes	4
End Mill Type	End Mill
Standards Met	ANSI
Cutter Diameter	5.0mm
Shank Type	Plain Round
Cutting Direction	Right Hand
Flute Type	Helical
Plunge Type	Centre Cutting
Milling Cutter Type	End Mills
Shank Diameter	5.0mm
Overall Length	51.0mm
Length Type	Regular
Cutter Style	Square End
Material	Carbide
Helix Angle	30\u00b0
Flute Length	16.0mm
System of Measurement	Metric
Coolant Delivery	External
Finish/Coating	Bright
