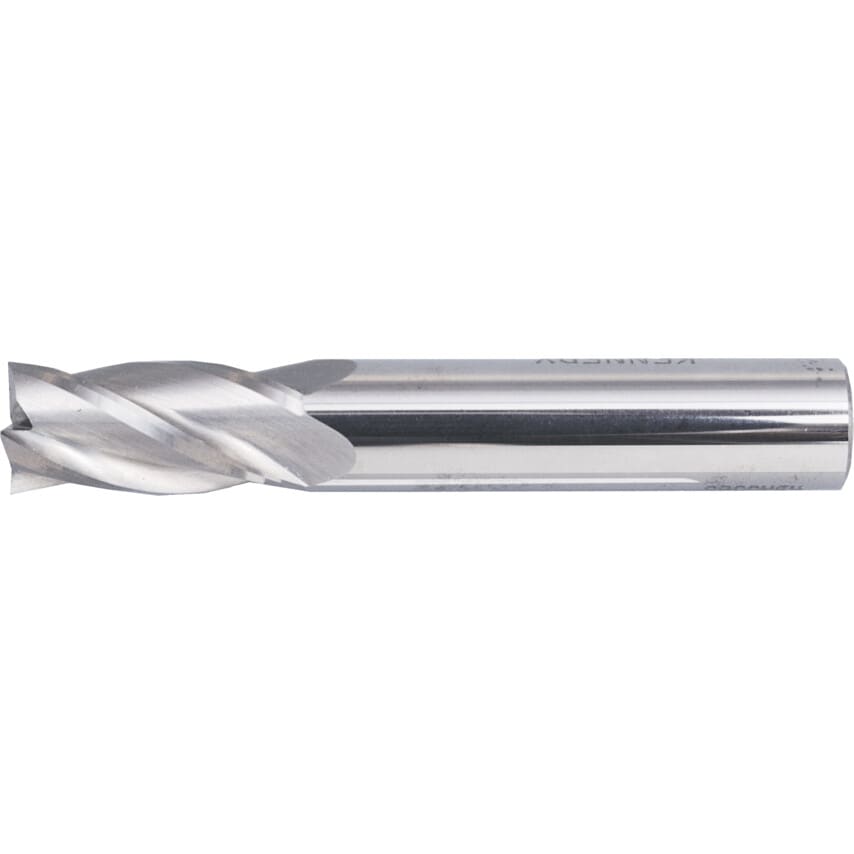

7.0MM 4FL Standard Carbide End Mill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Their 4 flute design offers maximum rigidity for increased strength when cutting. Features and Benefits Carbide micrograin construction for increased strength 4 flutes for maximum rigidity Offfers maximum swarf removal when plunging, slotting and routing in soft and non-ferrous materials Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

Cutting Direction	Right Hand
Standards Met	ANSI
Plunge Type	Centre Cutting
Number of Flutes	4
Helix Angle	30\u00b0
Flute Length	19.0mm
Length Type	Regular
End Mill Type	End Mill
Flute Type	Helical
Overall Length	64.0mm
Cutter Style	Square End
System of Measurement	Metric
Shank Diameter	8.0mm
Material	Carbide
Milling Cutter Type	End Mills
Shank Type	Plain Round
Cutter Diameter	7.0mm
Finish/Coating	Bright
Coolant Delivery	External
