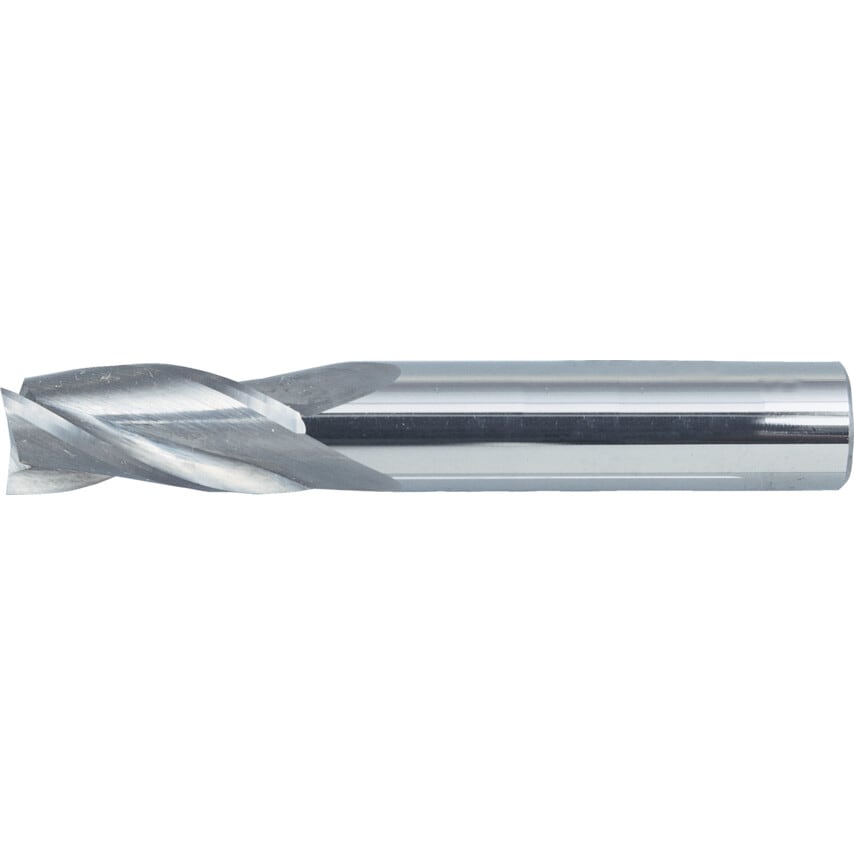

3.5MM 4FL Standard Carbide End Mill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Their 4 flute design offers maximum rigidity for increased strength when cutting. Features and Benefits Carbide micrograin construction for increased strength 4 flutes for maximum rigidity Offfers maximum swarf removal when plunging, slotting and routing in soft and non-ferrous materials Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

System of Measurement	Metric
Helix Angle	30\u00b0
Standards Met	ANSI
Cutting Direction	Right Hand
Coolant Delivery	External
Cutter Diameter	3.5mm
Material	Carbide
Shank Diameter	4.0mm
Shank Type	Plain Round
End Mill Type	End Mill
Number of Flutes	4
Milling Cutter Type	End Mills
Finish/Coating	Bright
Cutter Style	Square End
Overall Length	51.0mm
Flute Type	Helical
Plunge Type	Centre Cutting
Flute Length	12.0mm
Length Type	Regular
