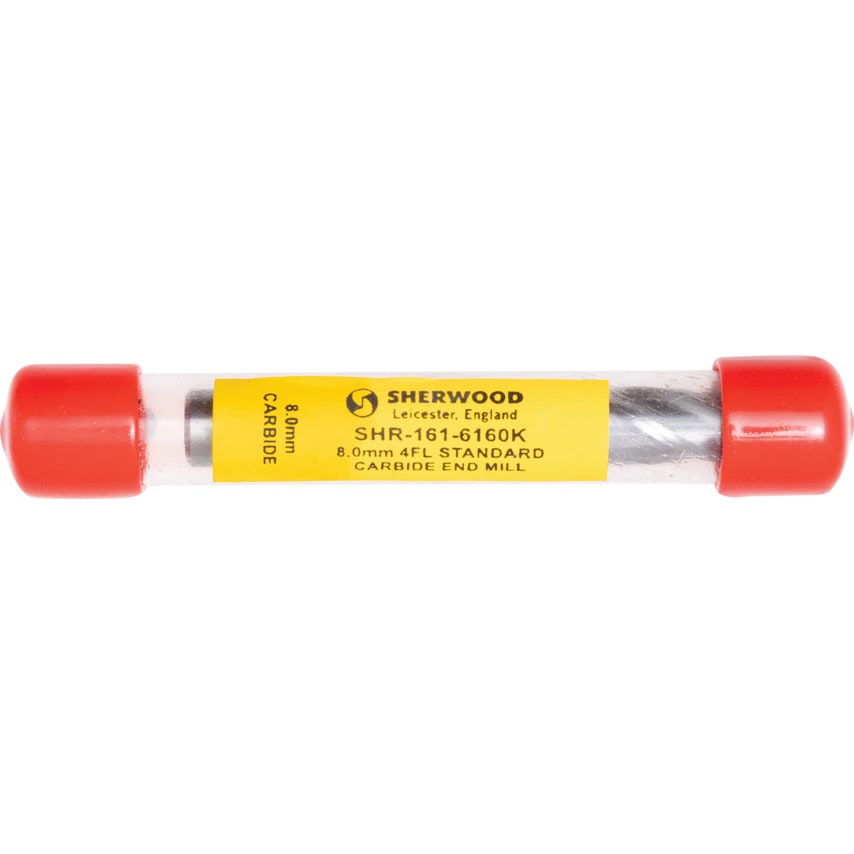

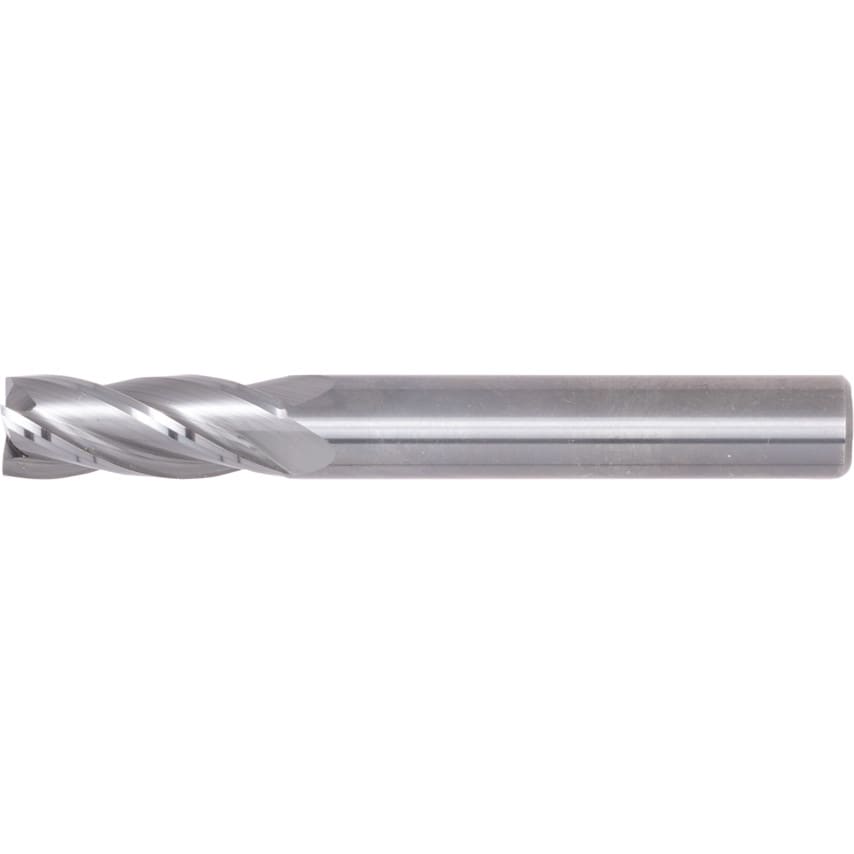

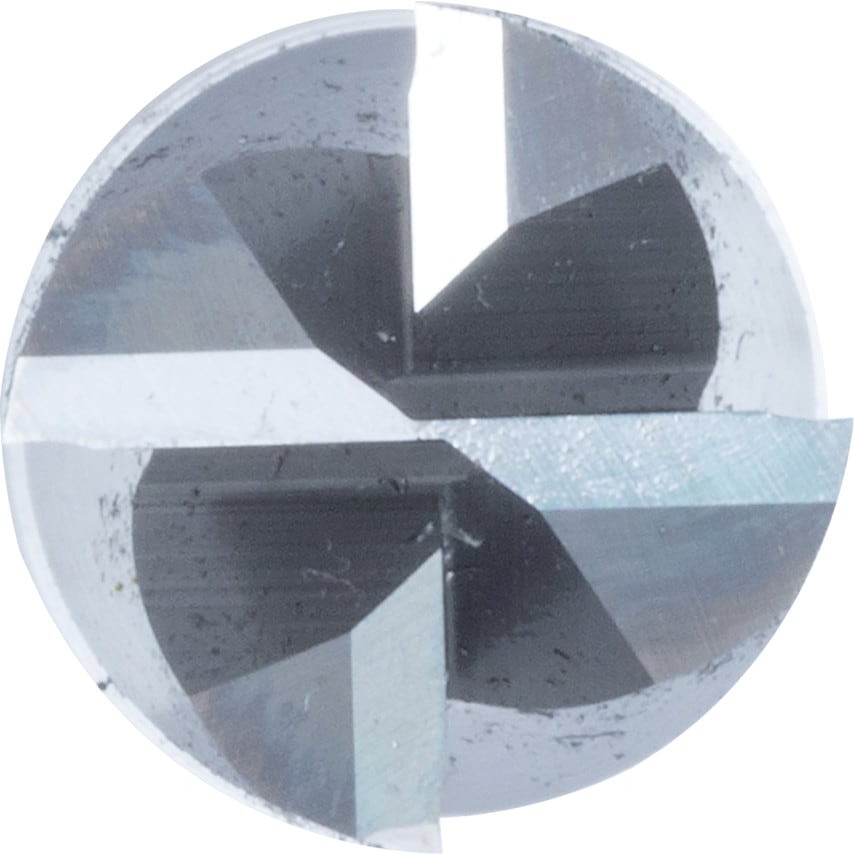

8.0MM 4FL Standard Carbide End Mill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Their 4 flute design offers maximum rigidity for increased strength when cutting. Features and Benefits Carbide micrograin construction for increased strength 4 flutes for maximum rigidity Offfers maximum swarf removal when plunging, slotting and routing in soft and non-ferrous materials Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

Standards Met	ANSI
End Mill Type	End Mill
Shank Diameter	8.0mm
Cutting Direction	Right Hand
Finish/Coating	Bright
Cutter Style	Square End
Overall Length	64.0mm
Shank Type	Plain Round
Number of Flutes	4
Flute Type	Helical
Helix Angle	30\u00b0
Milling Cutter Type	End Mills
System of Measurement	Metric
Length Type	Regular
Coolant Delivery	External
Material	Carbide
Plunge Type	Centre Cutting
Cutter Diameter	8.0mm
Flute Length	21.0mm
