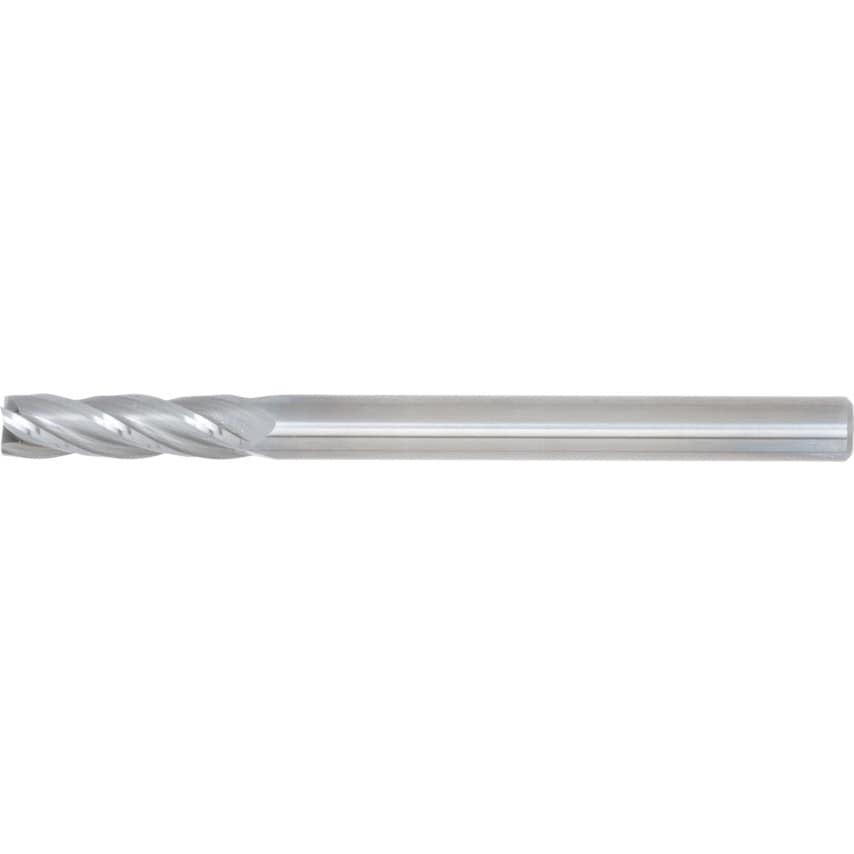

4.0MM 4FL Standard Carbide End Mill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Their 4 flute design offers maximum rigidity for increased strength when cutting. Features and Benefits Carbide micrograin construction for increased strength 4 flutes for maximum rigidity Offfers maximum swarf removal when plunging, slotting and routing in soft and non-ferrous materials Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

Coolant Delivery	External
Overall Length	51.0mm
Shank Diameter	4.0mm
Cutting Direction	Right Hand
End Mill Type	End Mill
Length Type	Regular
Finish/Coating	Bright
Number of Flutes	4
Cutter Diameter	4.0mm
Shank Type	Plain Round
Helix Angle	30\u00b0
Flute Length	14.0mm
Cutter Style	Square End
Plunge Type	Centre Cutting
Milling Cutter Type	End Mills
System of Measurement	Metric
Flute Type	Helical
Material	Carbide
Standards Met	ANSI
