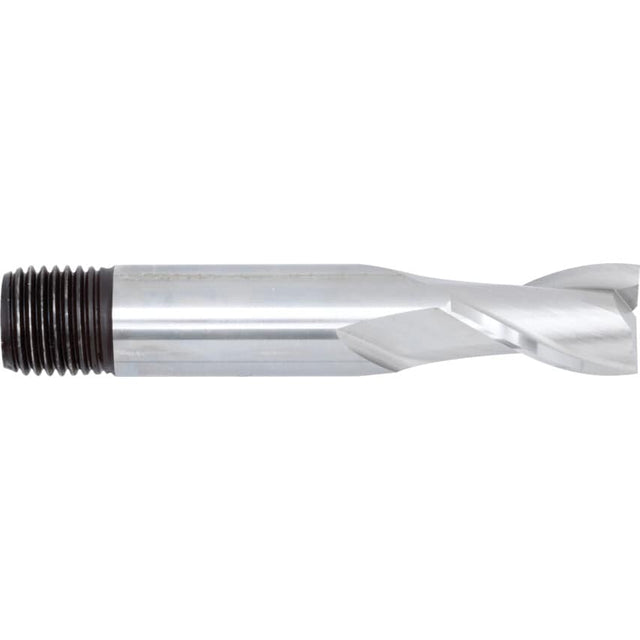

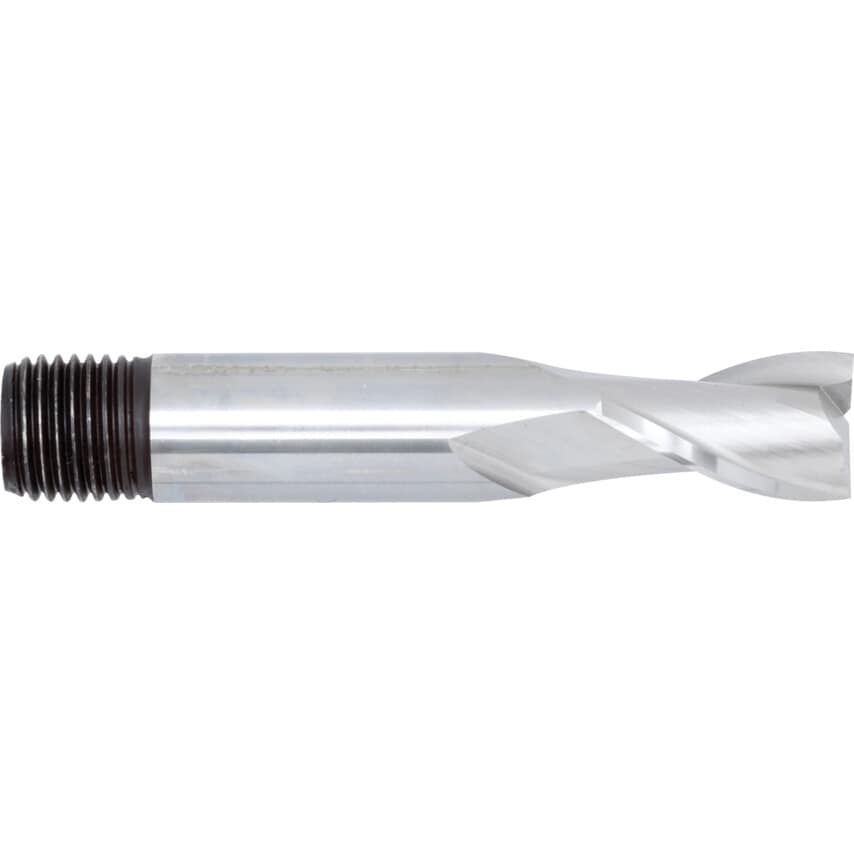

Short Series S210T slot drills are primarily used for milling keyways and slots. Manufactured from quality HSS with a bright finish they feature a flute type 30 helix and conform to BS 122: Part 4: 1980.
Features and Benefits
Quality HSS construction for increased strength
30 helix for omproved precision and cutting control
Typical Applications
Milling
Standards
Manufactured to BS 122: Part 4: 1980
Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033.
Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038.
Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.025 -0.046.
Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.033 -0.058.
Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.041 -0.071.
Diameter: Over 30.00 ~ . Tolerance: + 0.051 -0.089.
| Flute Length | 19mm |
| Coolant Delivery | External |
| Shank Diameter | 16mm |
| Material Grade | M2 |
| Flute Type | Spiral |
| End Mill Type | Slot Drill |
| Standards Met | BS 122 |
| Cutter Diameter | 19mm |
| Helix Angle | 30\u00b0 |
| Finish/Coating | Bright |
| Material | HSS |
| Length Type | Short |
| Overall Length | 79.0mm |
| Shank Type | Threaded |
| Product Type | Slot Drills |
| Number of Flutes | 2 |
