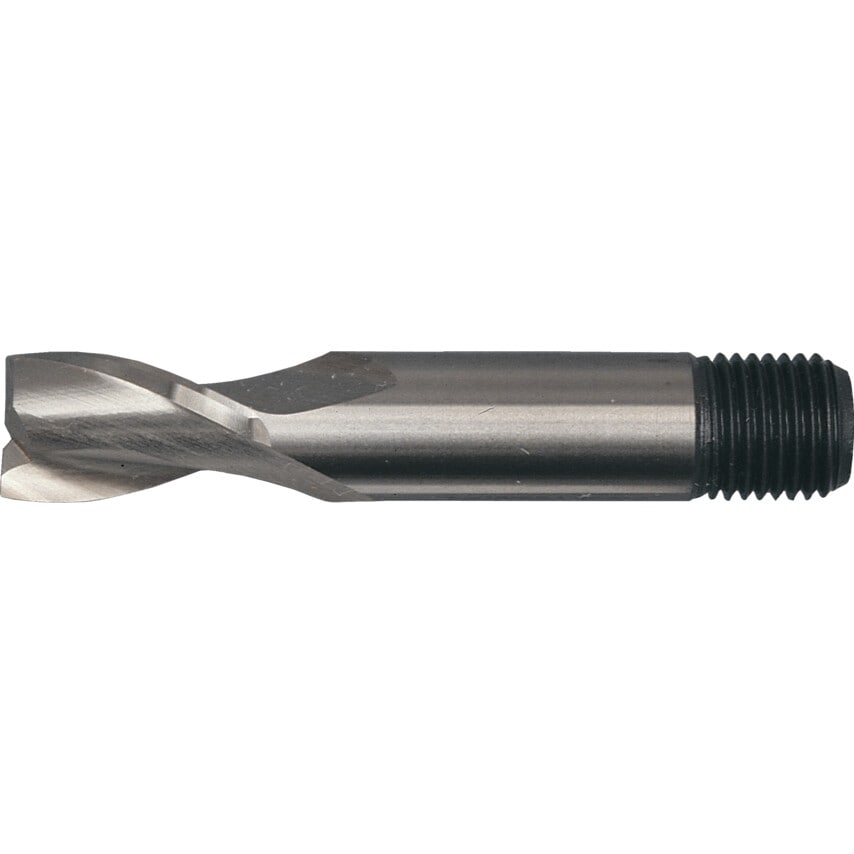

Short Series - Metric.
Bright finish. Flute type: 30 helix. Manufactured to BS 122: Part 4: 1980.
METRIC TOLERANCES:
Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033.
Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038.
Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.025 -0.046.
Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.033 -0.058.
Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.041 -0.071.
Diameter: Over 30.00 ~ . Tolerance: + 0.051 -0.089.
| Finish/Coating | Bright |
| Length Type | Short |
| Overall Length | 58.5mm |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 2 |
| Flute Length | 11mm |
| Flute Type | Helical |
| Cutter Diameter | 6.5mm |
| Shank Diameter | 10mm |
| Helix Angle | 30\u00b0 |
| Shank Type | Threaded |
| End Mill Type | Slot Drill |
| Material Grade | M35 |
