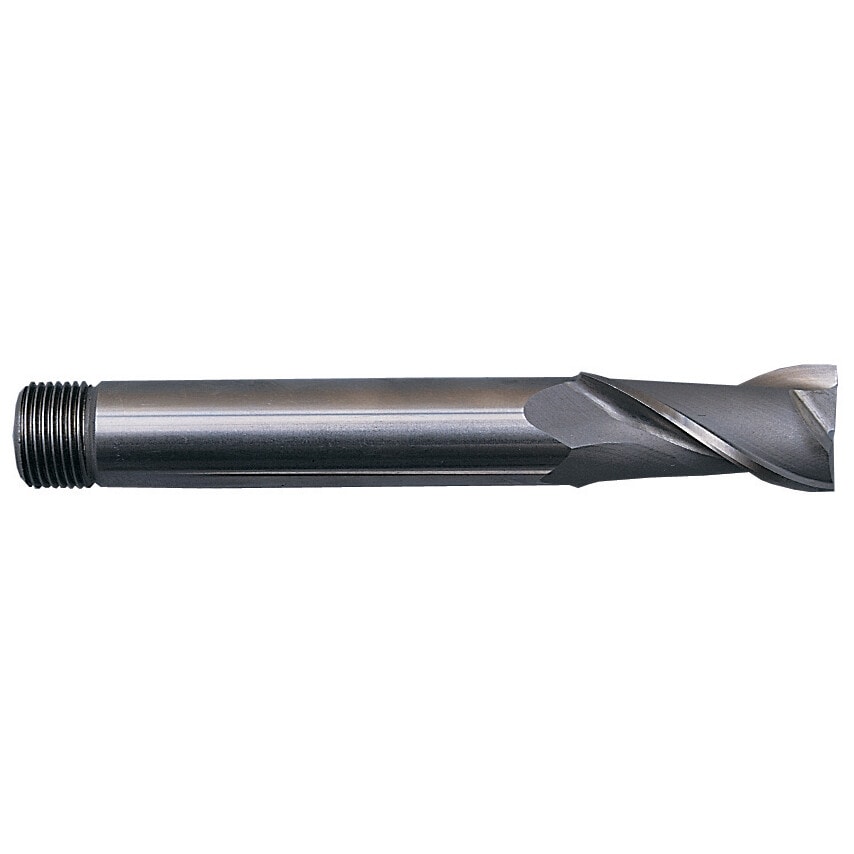

Long Series 5230T.
Used for milling keyways and slots. Bright finish. Flute type: 30 helix. Manufactured to BS 122: Part 4: 1980.
Inch Tolerances:
Diameter: up to 1/2". Tolerance: +0.0005, -0.0013.
Diameter: Over 1/2". Tolerance: +0.0005, -0.0015.
| Material Grade | M2 |
| Shank Diameter Tolerance | H6 |
| Flute Length | 1-1/8in |
| Flute Type | Helical |
| Material | HSS |
| Helix Angle | 30\u00b0 |
| Length Type | Long |
| Cutting Direction | Right Hand |
| Series | 5230T |
| System of Measurement | Inch |
| Number of Flutes | 2 |
| Cutter Style | Square |
| Standards Met | BS 122 |
| Cutter Diameter | 9/16in |
| Cutter Diameter Tolerance | e8 |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Overall Length | 4in |
| Shank Type | Threaded |
| Shank Diameter | 1/2in |
| Milling Application | Keyways | Plunging & Slotting |
| Milling Cutter Type | Slot Drill |
| Finish/Coating | Bright |
| Coolant Delivery | External |
