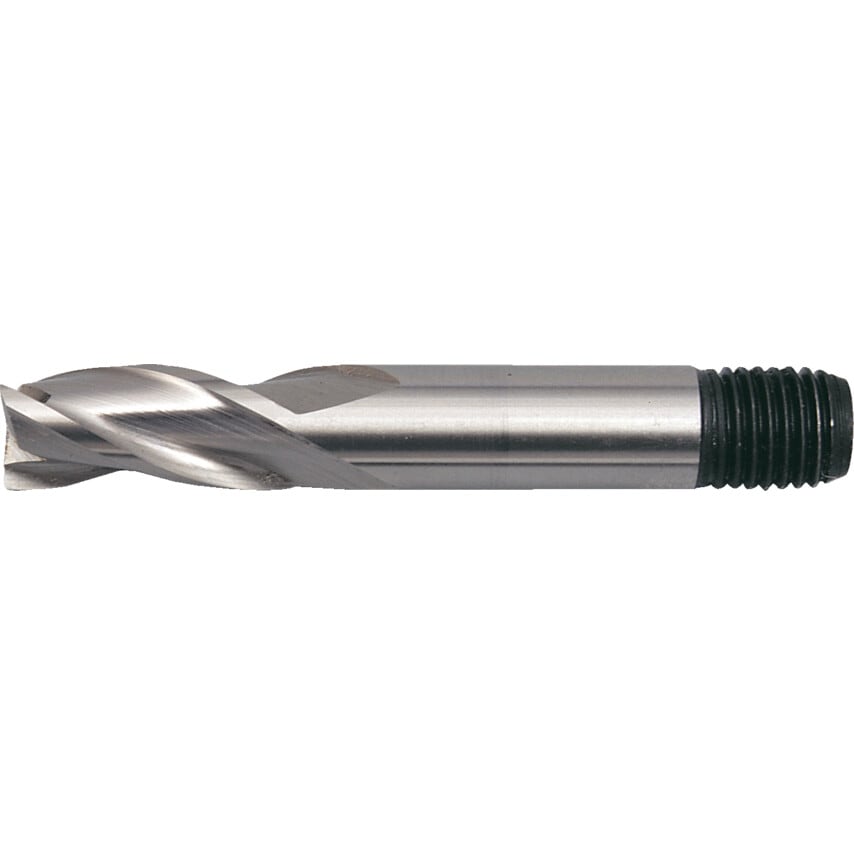

Regular Series Type 5321T.
Bright finish. Flute type: 30 helix. Manufactured to BS 122: Part 4: 1980.
Metric Tolerances:
Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.
Diameter: Over 38.00mm. Tolerance: +0.1250, -0.0000.
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Shank Type | Threaded |
| Finish/Coating | Bright |
| Number of Flutes | 3 |
| End Mill Type | Slot Drill |
| Product Type | Slot Drills |
| Shank Diameter | 12.0mm |
| System of Measurement | Metric |
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| Flute Length | 25.5mm |
| Cutter Diameter | 12.0mm |
| Overall Length | 71.5mm |
| Cutter Diameter Tolerance | e8 |
| Coolant Delivery | External |
| Standards Met | BS 122 |
| Milling Cutter Type | Slot Drill |
| Series | 5321T |
| Material Grade | M35 |
| Length Type | Regular |
