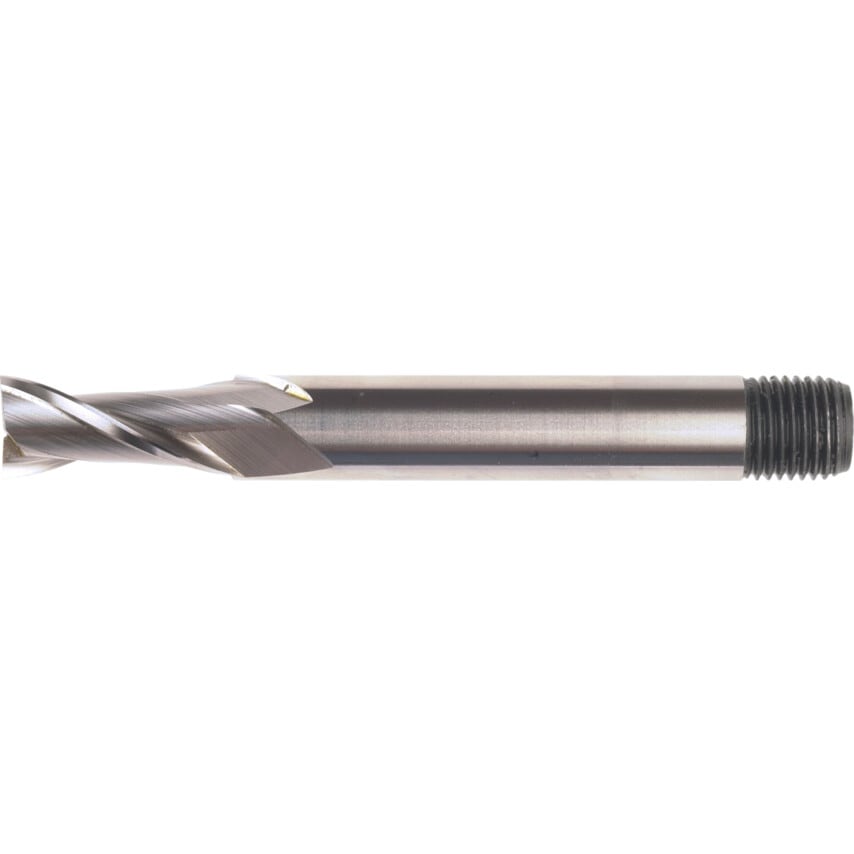

Long Series Type S231T - Metric
Bright finish. Flute type: 30 helix. Manufactured to BS 122: Part 4: 1980.
Metric Tolerances
Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033
Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038
Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.025 -0.046
Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.033 -0.058
Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.041 -0.071
Diameter: Over 30.00 ~ . Tolerance: + 0.051 -0.089
| Flute Type | Helical |
| Cutter Diameter | 14.0mm |
| Standards Met | BS 122 |
| Material Grade | M35 |
| Number of Flutes | 2 |
| Shank Type | Threaded |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Flute Length | 28.5mm |
| Cutter Style | Square |
| Material | Cobalt High Speed Steel |
| Shank Diameter | 12.0mm |
| Series | S231T |
| Cutter Diameter Tolerance | e8 |
| Plunge Type | Centre Cutting |
| End Mill Type | Slot Drill |
| Length Type | Long |
| Helix Angle | 30\u00b0 |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Overall Length | 101.5mm |
| Finish/Coating | Bright |
