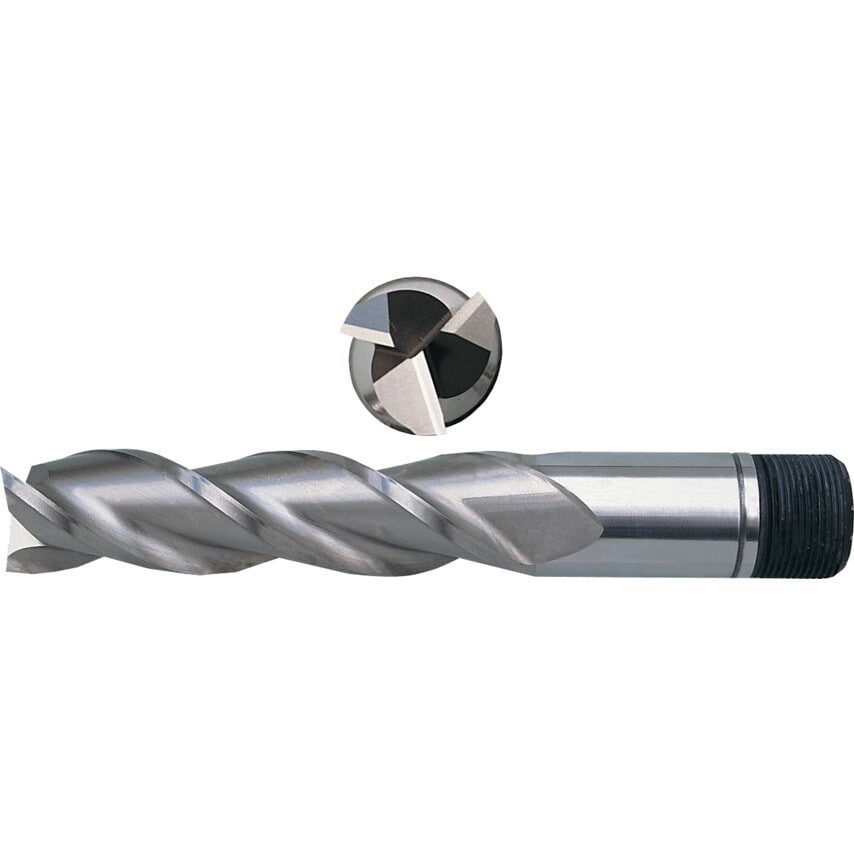

Long Series Type 5331T.
Bright finish. Flute type: 30 helix. Manufactured to BS 122: Part 4: 1980.
INCH TOLERANCES:
Diameter: up to 1". Tolerance: +0.0025, -0.0005.
Diameter: Over 1". Tolerance: +0.0050, -0.0000.
| Helix Angle | 30\u00b0 |
| Coolant Delivery | External |
| Finish/Coating | Bright |
| Standards Met | BS 122 |
| Shank Diameter | 1/4in |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Plunge Type | Centre Cutting |
| Length Type | Long |
| Cutter Diameter Tolerance | e8 |
| System of Measurement | Inch |
| Flute Type | Helical |
| Series | 5331T |
| Number of Flutes | 3 |
| Cutter Diameter | 1/8in |
| Material Grade | M35 |
| Cutting Direction | Right Hand |
| Overall Length | 2-1/2in |
| End Mill Type | Slot Drill |
| Flute Length | 3/4in |
| Cutter Style | Square |
| Shank Type | Threaded |
| Material | Cobalt High Speed Steel |
