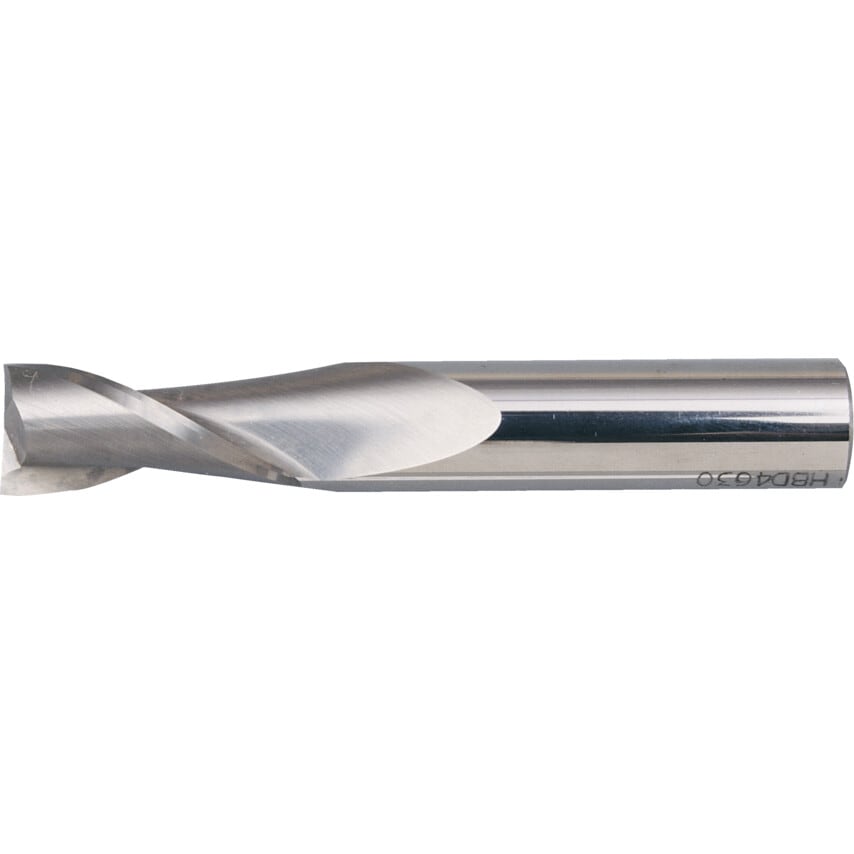

12.0MM 2FL Standard Carbide Slot Drill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Available in 2 flute specification for maximum swarf clearance. Features and Benefits Carbide micrograin construction for optimum hardness and cutting durability 2 flute design gives maximum swarf clearance for greater cutting efficiency Typical Applications Plunging Slotting Routing Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

Flute Length	25.0mm
Cutting Direction	Right Hand
Coolant Delivery	External
System of Measurement	Metric
Shank Diameter	12.0mm
Number of Flutes	2
Finish/Coating	Bright
Overall Length	76.0mm
Cutter Diameter	12.0mm
Length Type	Regular
Product Type	Slot Drills
Material	Carbide
Shank Type	Plain Round
Plunge Type	Centre Cutting
End Mill Type	Slot Drill
Standards Met	USCTI Standards
Helix Angle	30\u00b0
Milling Cutter Type	Slot Drill
Flute Type	Helical
Cutter Style	Square End
