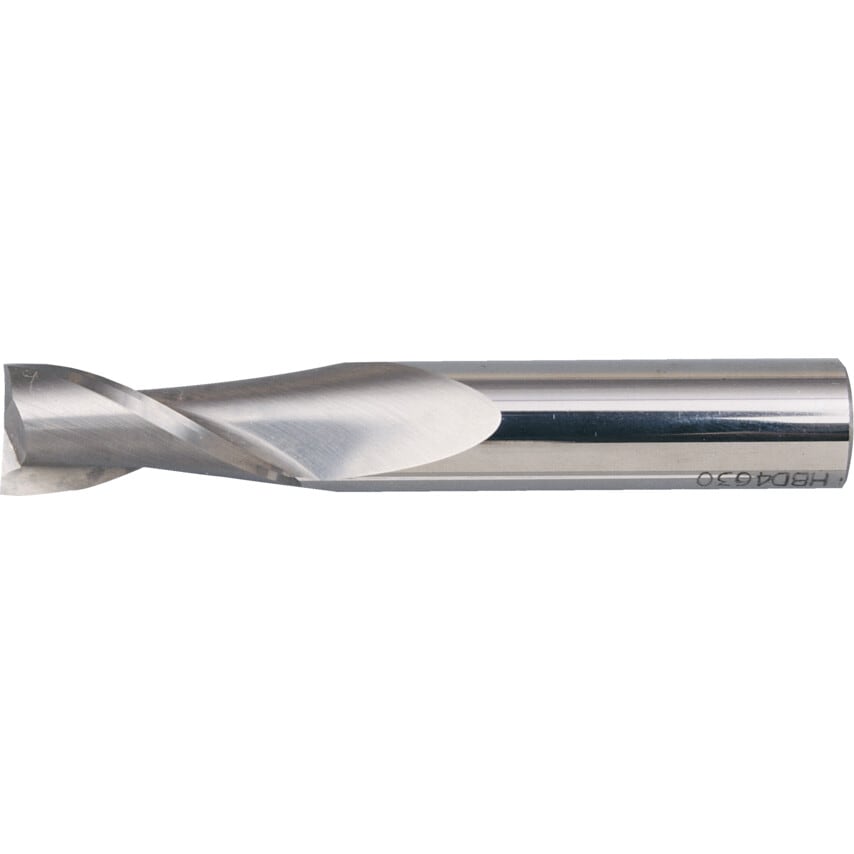

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Available in 2 flute specification for maximum swarf clearance.
Features and Benefits
Carbide micrograin construction for optimum hardness and cutting durability
2 flute design gives maximum swarf clearance for greater cutting efficiency
Typical Applications
Plunging
Slotting
Routing
Standards
Manufactured to USCTi Standards
Notes
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080
| Overall Length | 64.0mm |
| Helix Angle | 30\u00b0 |
| Cutter Style | Square End |
| Product Type | Carbide Slot Drill |
| Finish/Coating | Bright |
| Standards Met | USCTi |
| Coolant Delivery | External |
| Flute Type | Helical |
| Flute Length | 21.0mm |
| Cutter Diameter | 8.0mm |
| Number of Flutes | 2 |
| End Mill Type | Slot Drill |
| System of Measurement | Metric |
| Material | Carbide |
| Shank Type | Plain Round |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
| Length Type | Regular |
| Shank Diameter | 8.0mm |
