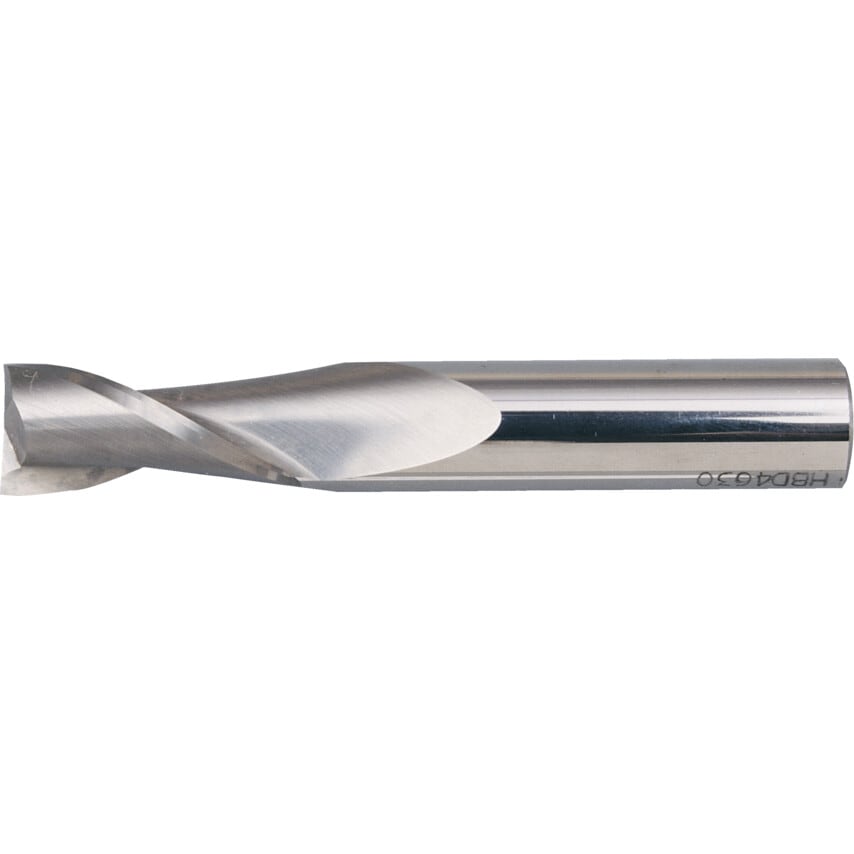

9.0MM 2FL Standard Carbide Slot Drill

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Available in 2 flute specification for maximum swarf clearance. Features and Benefits Carbide micrograin construction for optimum hardness and cutting durability 2 flute design gives maximum swarf clearance for greater cutting efficiency Typical Applications Plunging Slotting Routing Standards Manufactured to USCTi Standards Notes Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050 Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080

Cutting Direction	Right Hand
Length Type	Regular
Standards Met	USCTI Standards
Shank Type	Plain Round
Product Type	Carbide Slot Drill
System of Measurement	Metric
Milling Cutter Type	Slot Drill
Helix Angle	30\u00b0
Coolant Delivery	External
Number of Flutes	2
Flute Type	Helical
Material	Carbide
Flute Length	22.0mm
Finish/Coating	Bright
Cutter Style	Square End
End Mill Type	Slot Drill
Shank Diameter	10.0mm
Cutter Diameter	9.0mm
Plunge Type	Centre Cutting
Overall Length	70.0mm
