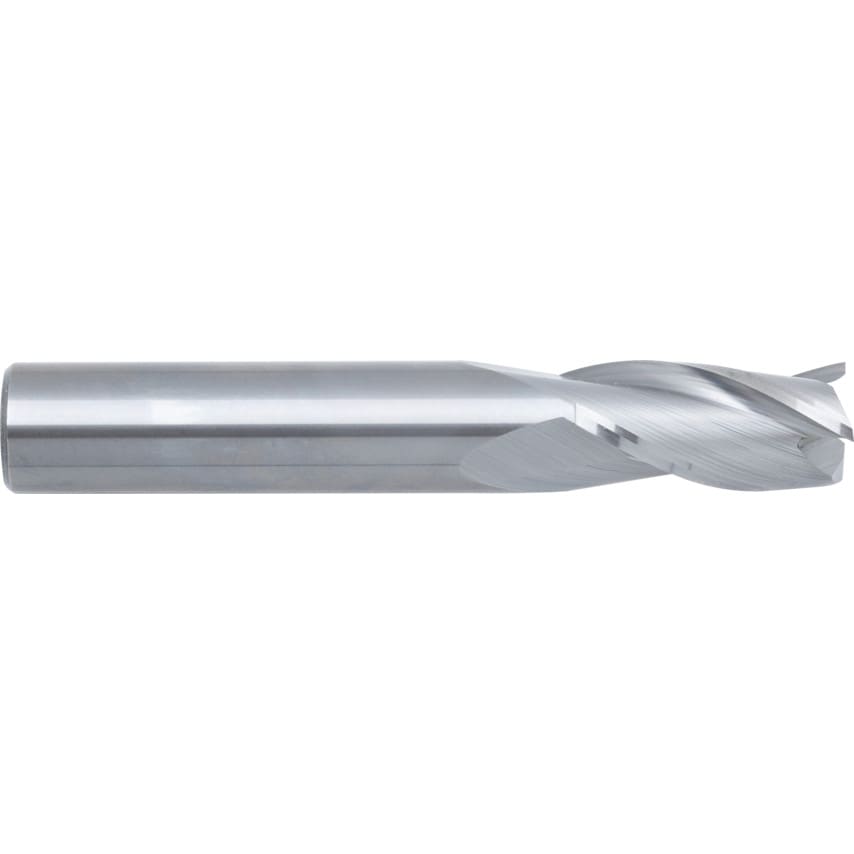

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards.
Features and Benefits
Micrograin carbide construction for greater hardness
3 flutes for efficient chip removal
Maxium swarf removal allows for optimum cutting performance
Typical Applications
Milling
Standards
USCTi Standards
Notes
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Length Type | Regular |
| Material | Carbide |
| Helix Angle | 30\u00b0 |
| Number of Flutes | 3 |
| Flute Type | Helical |
| Milling Cutter Type | Slot Drill |
| Shank Type | Plain Round |
| Plunge Type | Centre Cutting |
| Overall Length | 76.0mm |
| Finish/Coating | Bright |
| End Mill Type | Slot Drill |
| System of Measurement | Metric |
| Flute Length | 25.0mm |
| Cutter Diameter | 12.0mm |
| Shank Diameter | 12.0mm |
