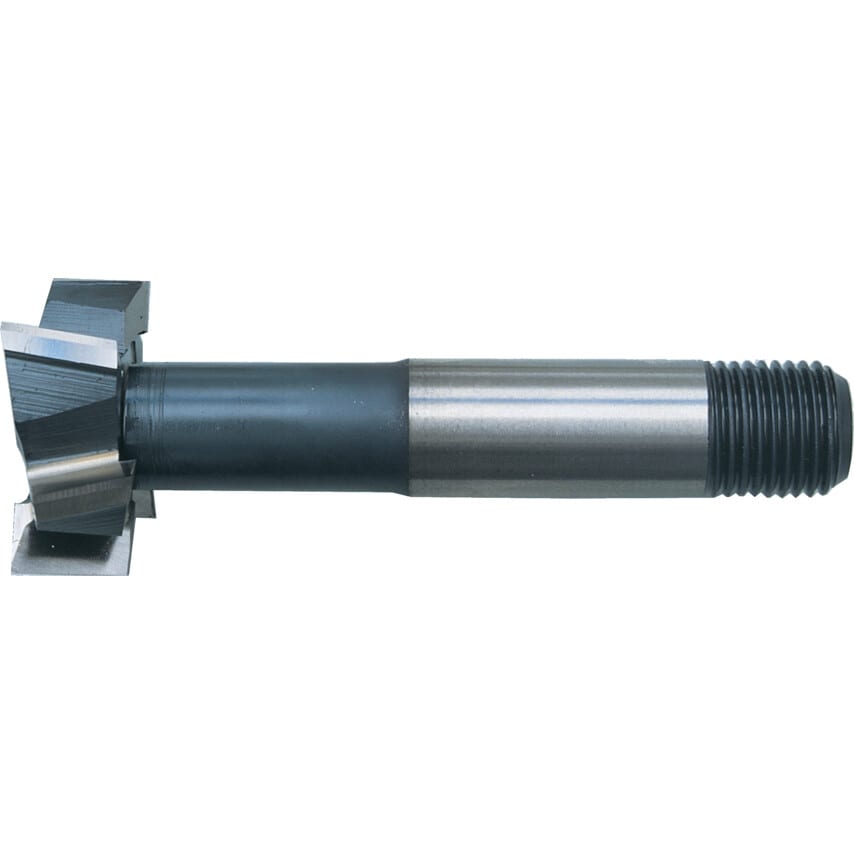

Used for machining T-slots on slide tables, fixtures etc., to DIN 650. For milling structural, carburized and heat treated steel up to 900N/mm2. Sizes up to 16mm and 1/2" have 6 flutes and 18mm and 5/8" upwards have 8 flutes. Made to DIN 851. Shank to DIN 1835/D. Flute form 12 RH/LH.
Metric Limits of Tolerance:
Diameter: +0.13 - 0.13.
Length: +0.13 - 0.13.
| Number of Teeth | 6 |
| Bolt Size | M12mm |
| Standards Met | DIN 851 |
| Overall Length | 74.0mm |
| System of Measurement | Metric |
| Material | HSS |
| Cutter Diameter | 22.0mm |
| Shank Type | Threaded |
| Shank Diameter | 12.0mm |
| Finish/Coating | Uncoated |
| Cutter Width | 10.0mm |
| Neck Diameter | 10.0mm |
| Milling Cutter Type | T-Slot Cutter |
