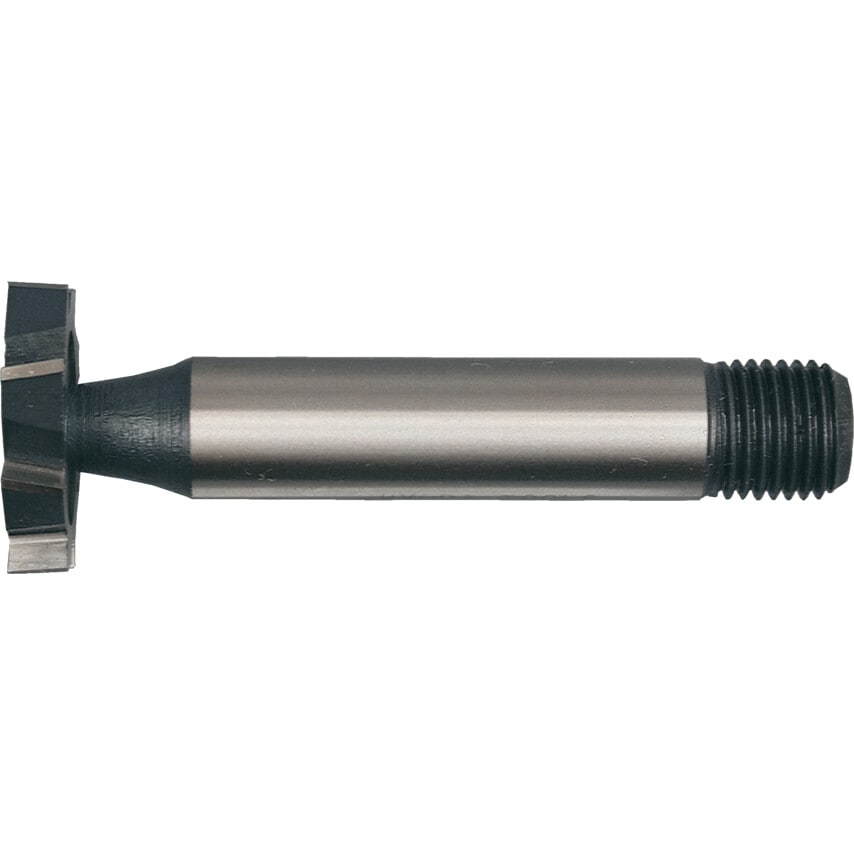

Inch - 1/2" Shank Diameter.
Produces closed slots for woodruff keys to DIN 6888. For milling structural, carburizing and heat treated steel up to 900N/mm2. Manufactured to BS 122 : Part 4 : 1980. Made to DIN 850. Shank to DIN 1835/D.
Inch Limits of Tolerance:
Diameter: +0.015" -0.100".
Width: +0.000" -0.001".
| Cutter Diameter | 1/2in |
| Shank Type | Threaded |
| Overall Length | 2-1/4in |
| Cutter Number | 304 |
| Cutter Style | Woodruff |
| Shank Diameter | 1/2in |
| Standards Met | BS 122 | DIN 850 |
| Finish/Coating | Uncoated |
| System of Measurement | Inch |
| Cutter Width | 3/32in |
| Series | 304 |
| Material | HSS |
