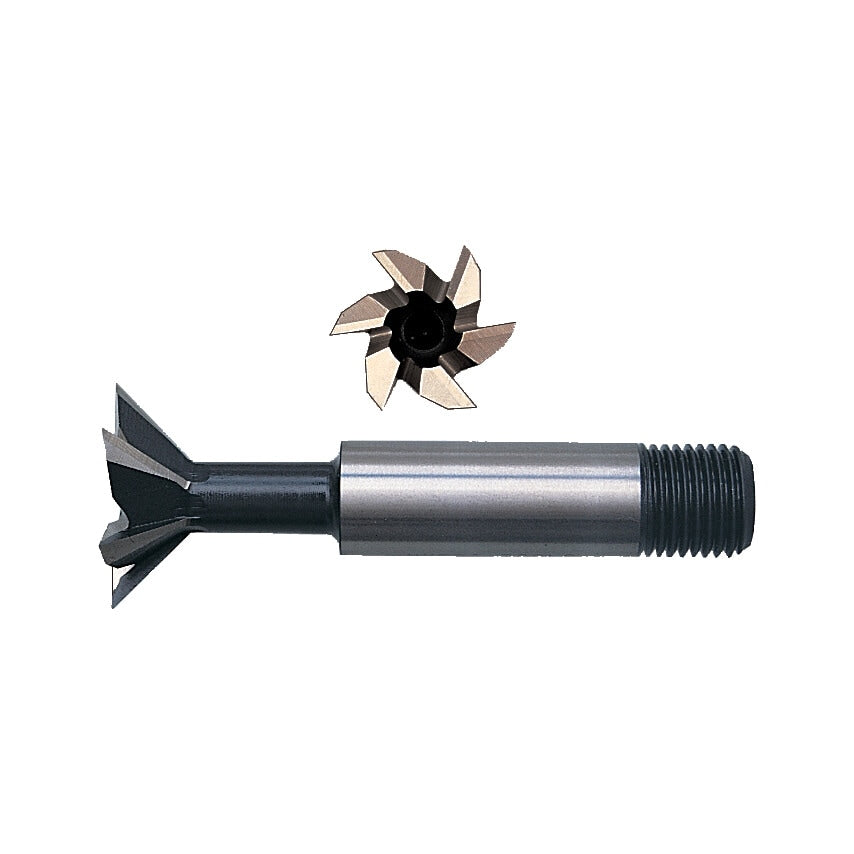

45 Corner Angle - Metric (Form C).
Designed to produce dovetail slideways in machine tool tables, jigs and fixtures. Bright finish, straight helix. Made to DIN 1833. Shank to DIN 1835D.
Metric diameter tolerance: + 0.25 - 0.00.
| Shank Diameter | 12.0mm |
| Overall Length | 70.0mm |
| Cutter Form | Corner Angle |
| Cutter Style | Dovetail |
| Cut Length | 7.5mm |
| Finish/Coating | Uncoated |
| Shank Type | Threaded |
| Standards Met | DIN 1833 | DIN 1835D |
| Number of Flutes | 8 |
| System of Measurement | Metric |
| Number of Teeth | 8 |
| Included Angle | 45\u00b0 |
| Cutter Diameter | 25.0mm |
| Material | HSS |
