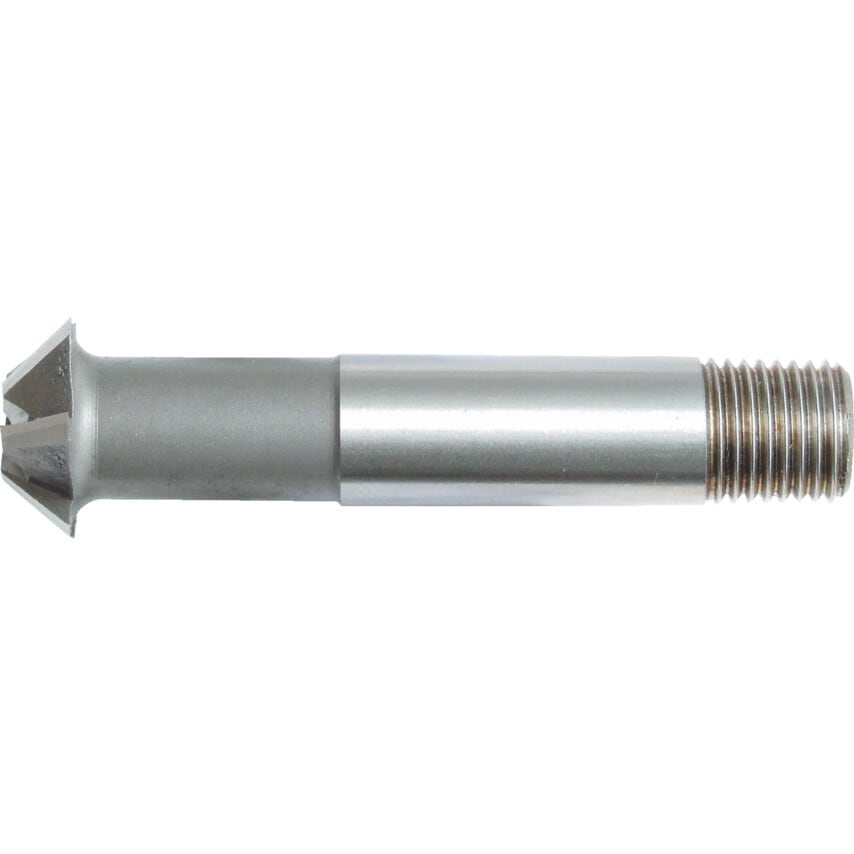

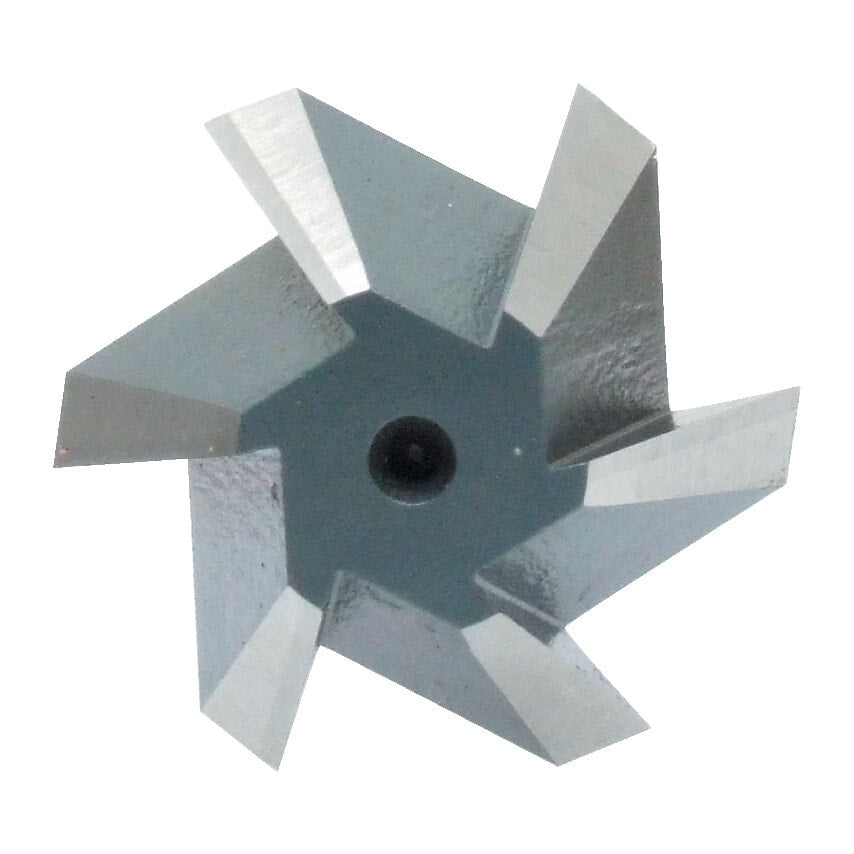

Threaded shank dovetail cutters designed to produce dovetail slide ways in machine tool tables, jigs and fixtures
Features
Bright finish
Straight helix
Manufactured to DIN 1833
Shank to DIN 1835D
45 Inverted - Metric (Form D)
Metric diameter tolerance: + 0.25 - 0.00
| System of Measurement | Metric |
| Cutter Style | Dovetail |
| Shank Type | Threaded |
| Included Angle | 45\u00b0 |
| Cutter Diameter | 32.0mm |
| Overall Length | 74.5mm |
| Material | HSS |
| Finish/Coating | Uncoated |
| Cut Length | 8.5mm |
| Standards Met | DIN 1833 | DIN 1835D |
| Number of Flutes | 8 |
| Shank Diameter | 16.0mm |
| Number of Teeth | 8 |
| Cutter Form | Inverted |
