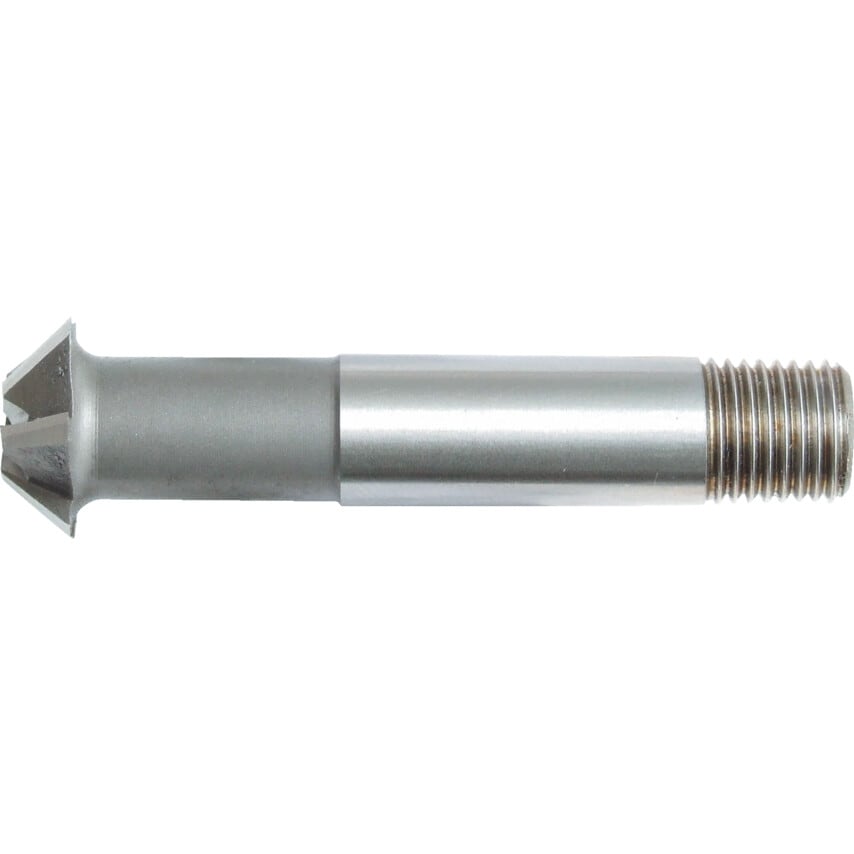

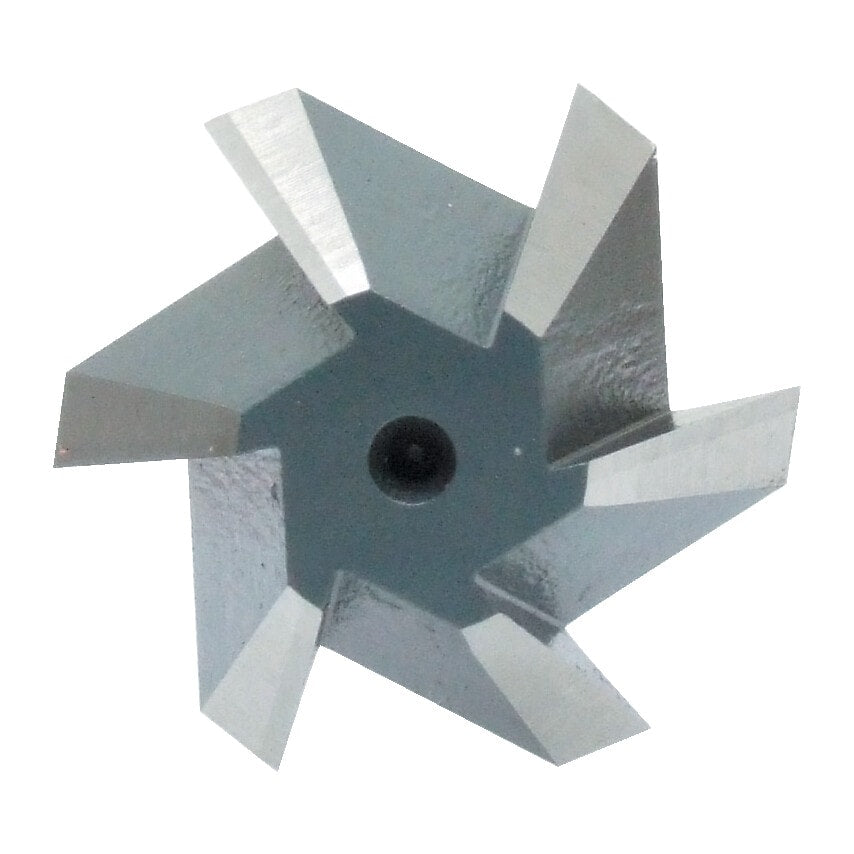

Threaded shank dovetail cutters designed to produce dovetail slide ways in machine tool tables, jigs and fixtures
Features
Bright finish
Straight helix
Manufactured to DIN 1833
Shank to DIN 1835D
45 Inverted - Metric (Form D)
Metric diameter tolerance: + 0.25 - 0.00
| Cutter Form | Inverted |
| Shank Diameter | 12.0mm |
| Number of Flutes | 6 |
| Cut Length | 4mm |
| Overall Length | 66.5mm |
| Cutter Style | Dovetail |
| Material | HSS |
| System of Measurement | Metric |
| Standards Met | DIN 1833 | DIN 1835D |
| Included Angle | 45\u00b0 |
| Finish/Coating | Uncoated |
| Shank Type | Threaded |
| Cutter Diameter | 16.0mm |
| Number of Teeth | 6 |
