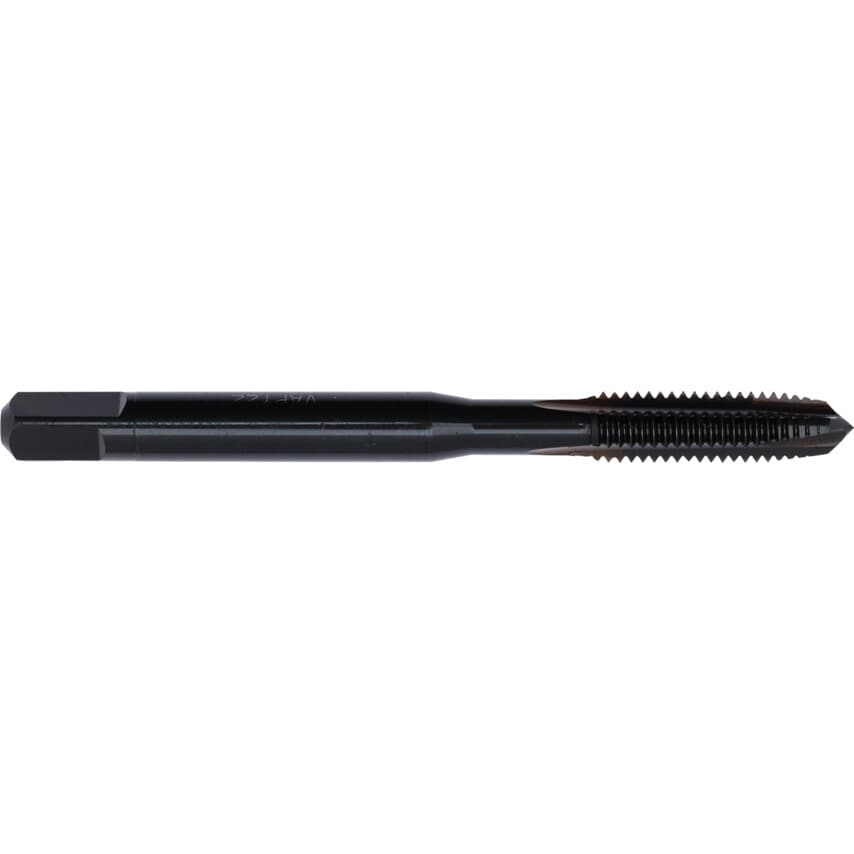

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others. Manufactured with a black oxide finish to resist heat, the spiral point for excellent sheering action.
Features and Benefits
Manufactured from durable high speed steel
Precision ground flutes for accurate thread cutting
Spiral point for excellent sheering action
Manufactured with a black oxide finish
Typical Applications
Tapping
Steel
Brass
Aluminium
Engineering
Manufacturing
Standards
Tap dimensions to ISO529
Straight Flute Individual Sizes IS0 529
Notes
Available in sizes 1.6 x 0.35mm - 24 x 3.00mm
(1) Diameter and pitch not mentioned in ISO
| Dimensions Standard | ISO 529 |
| Shank Diameter | 5mm |
| Pitch | 0.80 |
| Finish/Coating | Steam Tempered |
| Square Width | 4.0mm |
| Thread Size | M5 |
| Class of Fit | 6H |
| Thread Direction | Right Hand |
| Thread Standard | Metric Coarse |
| ISO Category | N | P | S |
| Overall Length | 58.0mm |
| Thread Length | 12mm |
| Number of Flutes | 3 |
| Material | HSS |
| Material Grade | M2 |
| Material Application | Aluminium | Steels |
| Tap Type | Spiral Point |
