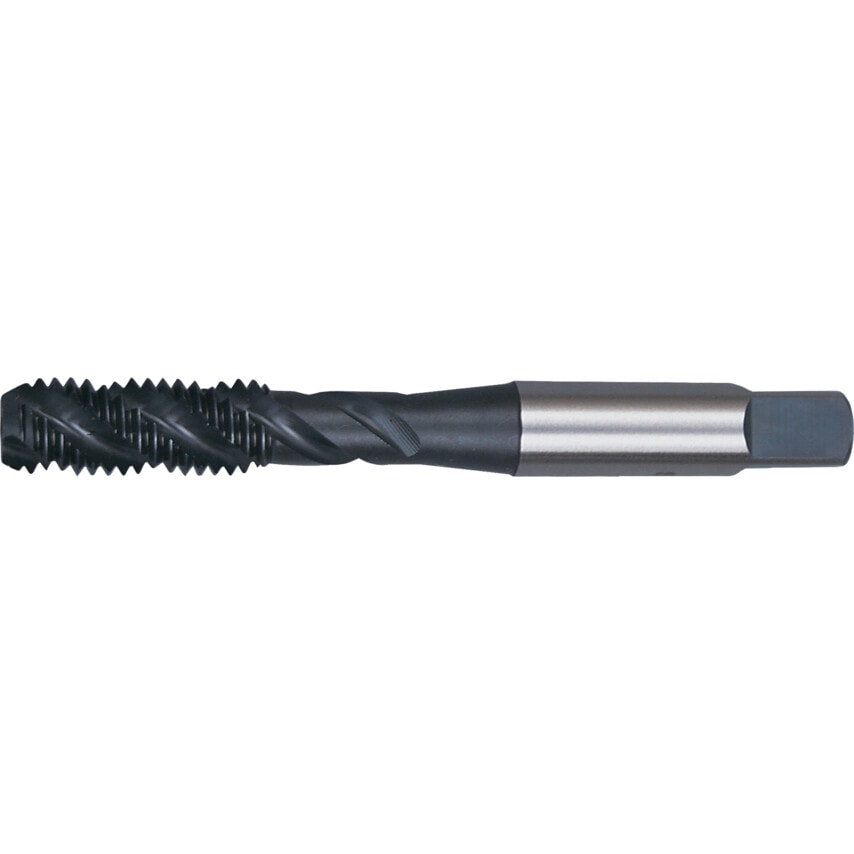

Sherwood HSS coarse ground thread spiral flute taps are manufactured from high speed steel with a black oxide finish for improved wear and heat resistance. Ideal for use on a wide range of materials including steel and stainless steel, the precision ground flutes offer excellent cutting accuracy.
Features and Benefits
Manufacturedd from high speed steel for improved rigidity
Oxidised finish for greater heat resistance and reduced wear
Precision ground flutes for greater cutting accuracy
Specifications
Class 2 thread forms
Medium fit tolerance
Precision ground flutes
Spiral flute
Oxidised finish
Tap dimensions conform to ISO529
Typical Applications
Tapping
Steel
Stainless steel
| Product Type | Spiral Flute Taps |
| Material | HSS |
| Overall Length | 112.0mm |
| Pitch | 2.50 |
| Helix Angle | 45\u00b0 |
| Dimensions Standard | ISO 529 |
| Thread Standard | Metric Coarse |
| Finish/Coating | Steam Tempered |
| Material Application | Stainless Steels | Steels |
| Thread Direction | Right Hand |
| Tap Type | Spiral Flute |
| Square Width | 11.2mm |
| Thread Size | M18 |
| Thread Length | 30mm |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| ISO Category | M | P |
| Shank Diameter | 14mm |
| Material Grade | M2 |
