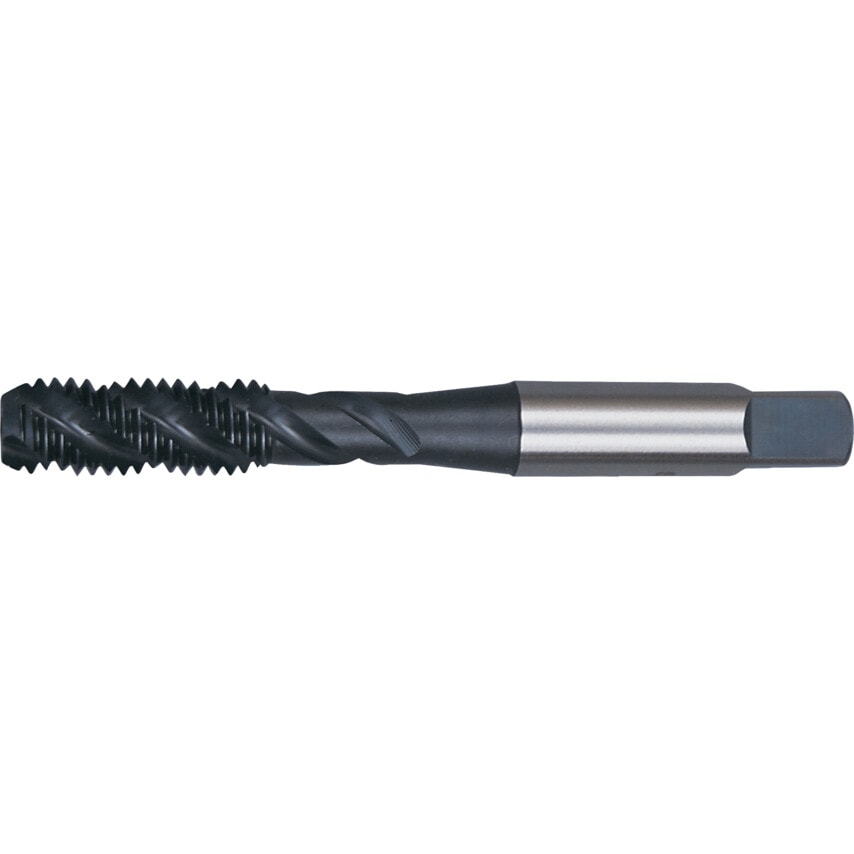

Sherwood HSS coarse ground thread spiral flute taps are manufactured from high speed steel with a black oxide finish for improved wear and heat resistance. Ideal for use on a wide range of materials including steel and stainless steel, the precision ground flutes offer excellent cutting accuracy.
Features and Benefits
Manufacturedd from high speed steel for improved rigidity
Oxidised finish for greater heat resistance and reduced wear
Precision ground flutes for greater cutting accuracy
Specifications
Class 2 thread forms
Medium fit tolerance
Precision ground flutes
Spiral flute
Oxidised finish
Tap dimensions conform to ISO529
Typical Applications
Tapping
Steel
Stainless steel
| Dimensions Standard | ISO 529 |
| ISO Category | M | P |
| Material Grade | M2 |
| Shank Diameter | 18mm |
| Finish/Coating | Steam Tempered |
| Material Application | Stainless Steels | Steels |
| Thread Length | 36mm |
| Product Type | Spiral Flute Taps |
| Material | HSS |
| Thread Size | M24 |
| Square Width | 14.0mm |
| Pitch | 3.00 |
| Overall Length | 130.0mm |
| Number of Flutes | 3 |
| Helix Angle | 45\u00b0 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Class of Fit | 6H |
| Thread Standard | Metric Coarse |
