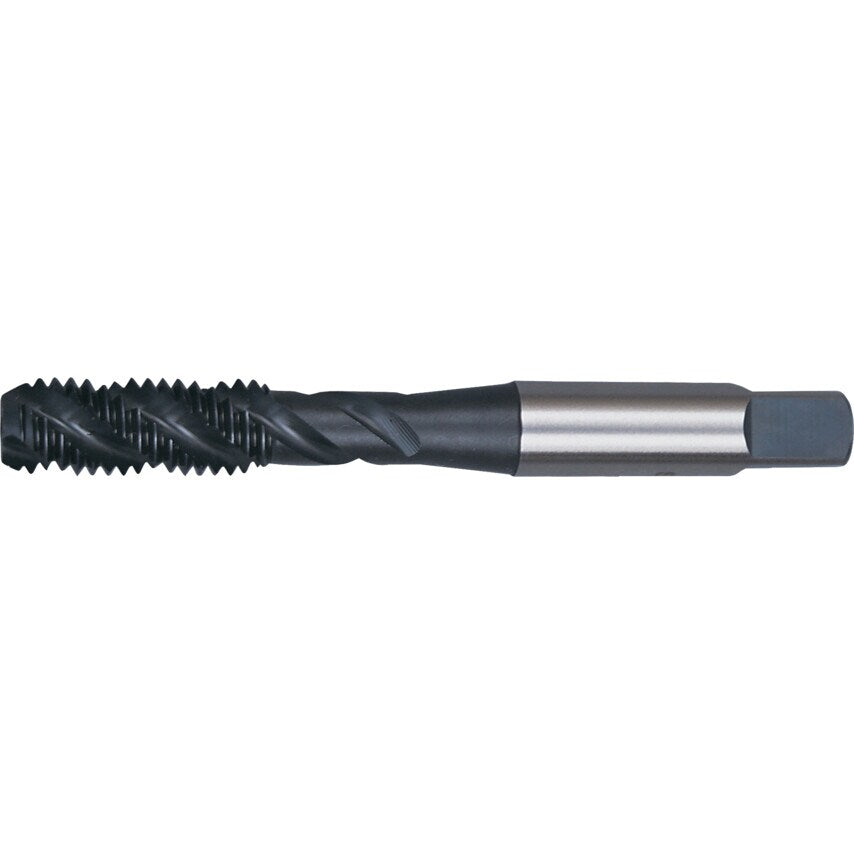

Sherwood HSS coarse ground thread spiral flute taps are manufactured from high speed steel with a black oxide finish for improved wear and heat resistance. Ideal for use on a wide range of materials including steel and stainless steel, the precision ground flutes offer excellent cutting accuracy.
Features and Benefits
Manufacturedd from high speed steel for improved rigidity
Oxidised finish for greater heat resistance and reduced wear
Precision ground flutes for greater cutting accuracy
Specifications
Class 2 thread forms
Medium fit tolerance
Precision ground flutes
Spiral flute
Oxidised finish
Tap dimensions conform to ISO529
Typical Applications
Tapping
Steel
Stainless steel
| Number of Flutes | 3 |
| Finish/Coating | Steam Tempered |
| Dimensions Standard | ISO 529 |
| Shank Diameter | 11.2mm |
| Class of Fit | 6H |
| Thread Length | 25mm |
| Thread Direction | Right Hand |
| Material Application | Stainless Steels | Steels |
| Thread Standard | Metric Coarse |
| Overall Length | 95.0mm |
| Material Grade | M2 |
| ISO Category | M | P |
| Square Width | 9.0mm |
| Material | HSS |
| Pitch | 2.00 |
| Tap Type | Spiral Flute |
| Helix Angle | 45\u00b0 |
| Thread Size | M14 |
