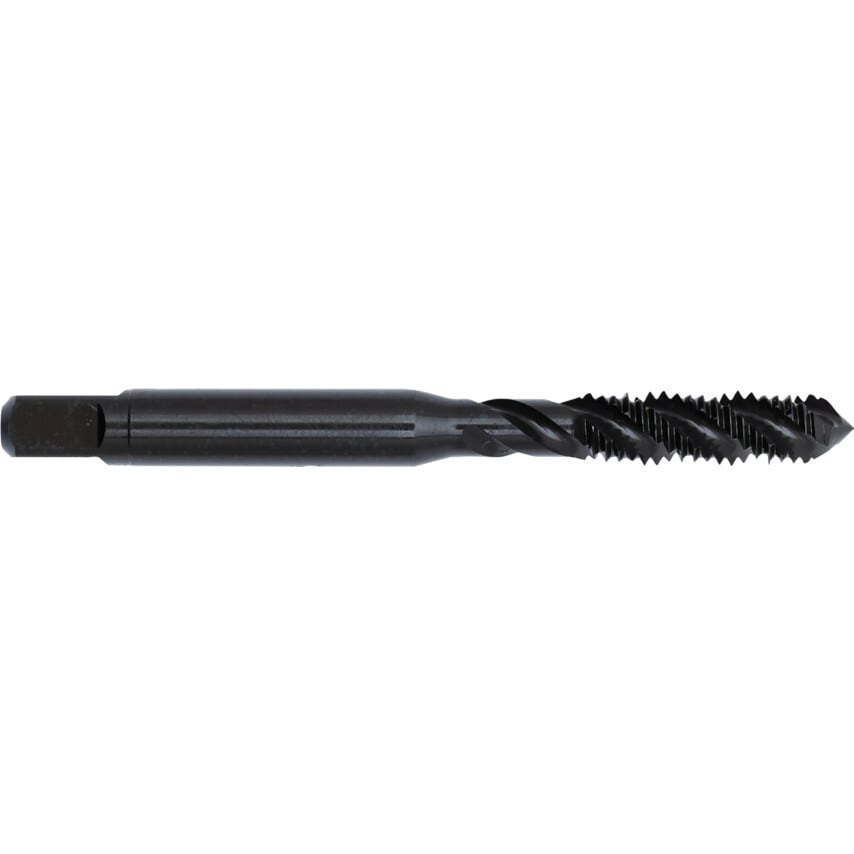

Sherwood HSS coarse ground thread spiral flute taps are manufactured from high speed steel with a black oxide finish for improved wear and heat resistance. Ideal for use on a wide range of materials including steel and stainless steel, the precision ground flutes offer excellent cutting accuracy.
Features and Benefits
Manufacturedd from high speed steel for improved rigidity
Oxidised finish for greater heat resistance and reduced wear
Precision ground flutes for greater cutting accuracy
Specifications
Class 2 thread forms
Medium fit tolerance
Precision ground flutes
Spiral flute
Oxidised finish
Tap dimensions conform to ISO529
Typical Applications
Tapping
Steel
Stainless steel
| Pitch | 1.00 |
| Material | HSS |
| ISO Category | M | P |
| Material Application | Stainless Steels | Steels |
| Thread Standard | Metric Coarse |
| Number of Flutes | 3 |
| Product Type | Spiral Flute Taps |
| Helix Angle | 45\u00b0 |
| Overall Length | 66.0mm |
| Shank Diameter | 6.3mm |
| Square Width | 5.0mm |
| Thread Size | M6 |
| Finish/Coating | Steam Tempered |
| Class of Fit | 6H |
| Dimensions Standard | ISO 529 |
| Material Grade | M2 |
| Tap Type | Spiral Flute |
| Thread Length | 19mm |
| Thread Direction | Right Hand |
