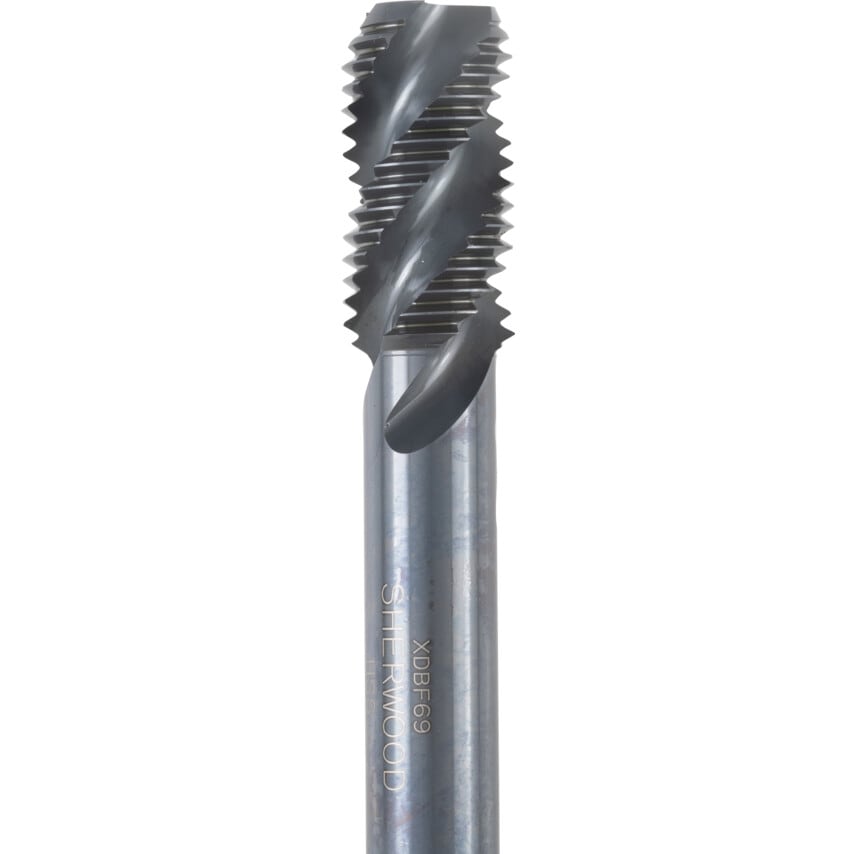

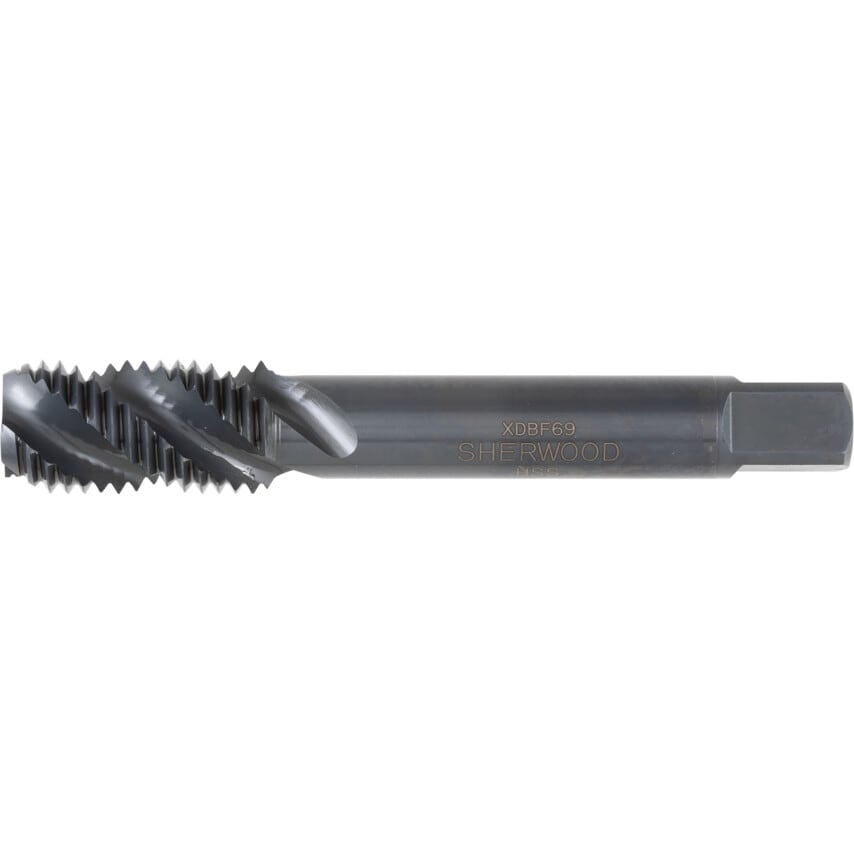

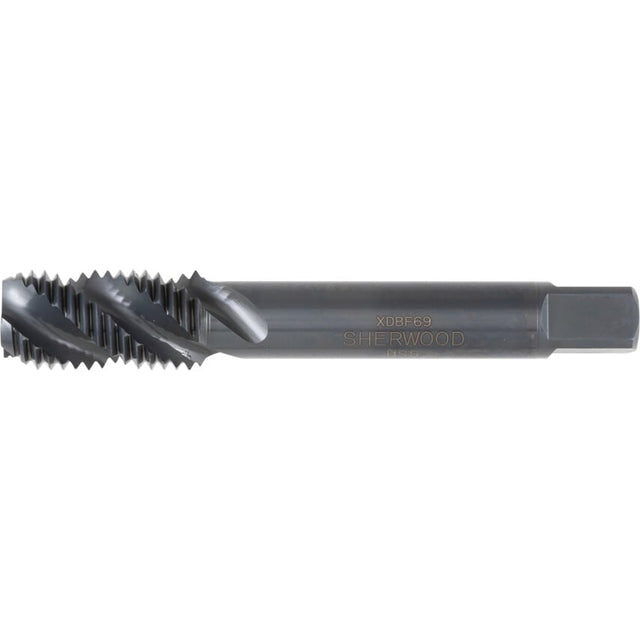

Sherwood HSS coarse ground thread spiral flute taps are manufactured from high speed steel with a black oxide finish for improved wear and heat resistance. Ideal for use on a wide range of materials including steel and stainless steel, the precision ground flutes offer excellent cutting accuracy.
Features and Benefits
Manufacturedd from high speed steel for improved rigidity
Oxidised finish for greater heat resistance and reduced wear
Precision ground flutes for greater cutting accuracy
Specifications
Class 2 thread forms
Medium fit tolerance
Precision ground flutes
Spiral flute
Oxidised finish
Tap dimensions conform to ISO529
Typical Applications
Tapping
Steel
Stainless steel
| Helix Angle | 45\u00b0 |
| Shank Diameter | 12.5mm |
| Class of Fit | 6H |
| Dimensions Standard | ISO 529 |
| ISO Category | M | P |
| Square Width | 10.0mm |
| Product Type | Spiral Flute Taps |
| Material | HSS |
| Pitch | 2.00 |
| Material Grade | M2 |
| Overall Length | 102.0mm |
| Thread Length | 25mm |
| Tap Type | Spiral Flute |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Thread Size | M16 |
| Material Application | Stainless Steels | Steels |
| Finish/Coating | Steam Tempered |
| Thread Standard | Metric Coarse |
