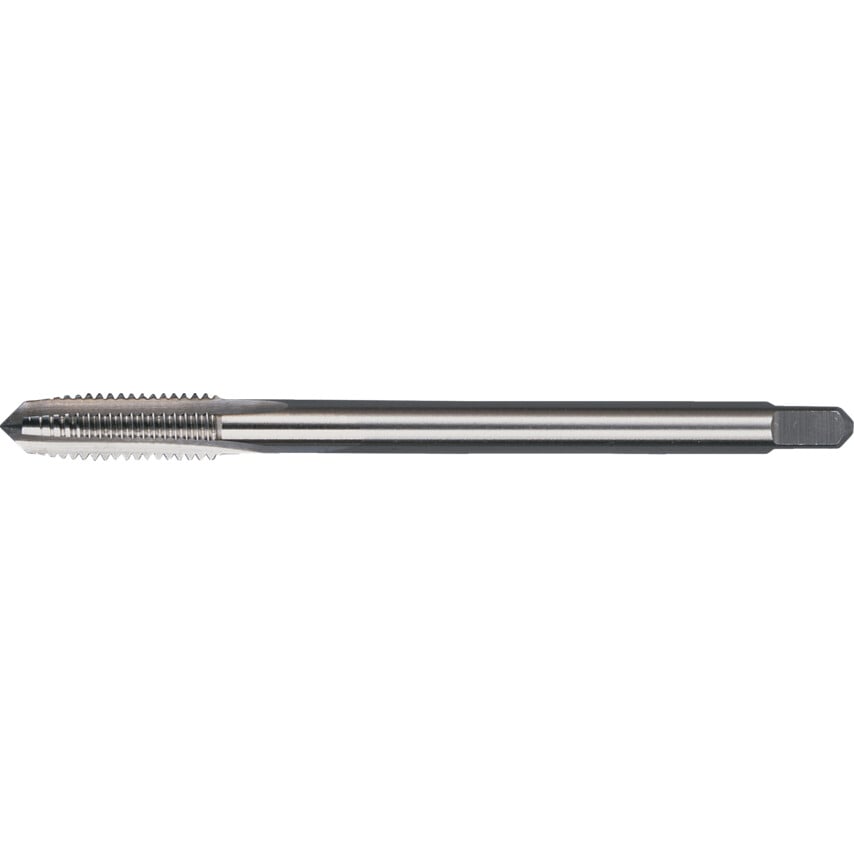

Sherwood HSS long series taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.
Manufactured with precision ground flutes for producing accurate thread forms, they are manufactured with a standard bright finish.
Features and Benefits
High speed steel construction with bright finish for increased durability
Long shank design for deeper cutting applications
Class 2 thread forms / medium fit tolerance
Precision ground flutes for greater cutting accuracy
Standards
Tap dimensions to ISO529
| Thread Length | 29mm |
| Chamfer | Second |
| Product Type | Second Tap |
| Finish/Coating | Bright |
| Overall Length | 119.0mm |
| Square Width | 7.1mm |
| Thread Direction | Right Hand |
| Material Grade | M2 |
| Class of Fit | 6H |
| Tap Type | Straight Flute Extension |
| ISO Category | K | M | N | P |
| Thread Standard | Metric Coarse |
| Material Application | Aluminium | Cast Iron | Stainless Steels | Steels |
| Thread Size | M12 |
| Dimensions Standard | ISO 529 |
| Material | HSS |
| Pitch | 1.75 |
| Shank Diameter | 9mm |
| Number of Flutes | 4 |
